NetVanta 5305 Hardware Installation Guide Option Modules
61200990L1-34N Copyright © 2010 ADTRAN, Inc. 23
NetVanta HSSI Wide Module (P/N 1200934L1)
The NetVanta HSSI Wide Module (shown in Figure 6) provides an HSSI interface for the NetVanta 5305. Up
to two HSSI Wide Modules may be used simultaneously in the NetVanta 5305 chassis. The HSSI Wide
Module may be installed in any slot (1 through 6). Table A-4 on page 34 gives the pinouts for this module.

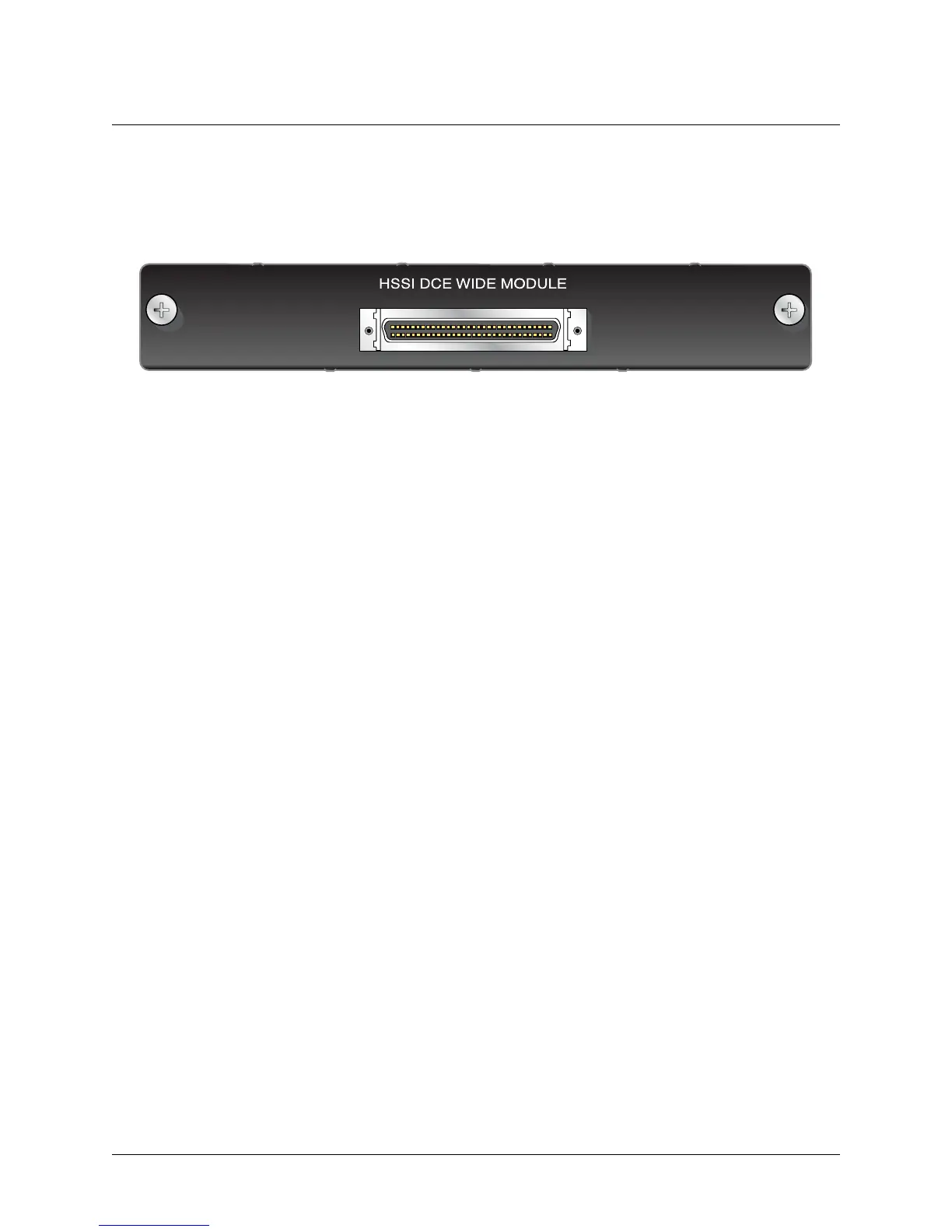

Figure 6. NetVanta HSSI Wide Module
Features and Specifications
Interface
• 50-pin SCSI-II female connector
• Line Rate: 0 to 52 Mbps
• Signal Type: Electrically balanced with non-return-to-zero (NRZ) encoding
Compliance
• EMC - see Electromagnetic Compatibility (EMC) Table on page 6.
• UL/CUL 60950
• EN 60950
• IEC 60950
• AS/NZS 60950
Environmental
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C
• Relative Humidity: Up to 95 percent, noncondensing
Physical
• 5.63-inch W x 8.63-inch D
