ADTRAN Total Access 600R User Manual

Page 16 © 2002, ADTRAN, Inc. 64200600L1#T-31A
Total Access 600R User Interface Guide (UIG)
Window Panes
When you first start a terminal menu session, the terminal menu window is divided into left and right panes. The left
pane shows the list of available submenus, while the right pane shows the contents of the currently selected submenu.
You can view the terminal windows in two ways: with fields and submenus displaying horizontally across the right
pane, or with fields and submenus displaying vertically down the right pane. Viewing submenus vertically rather than
horizontally allows you to see information at a glance rather than scrolling horizontally across the window. To change
the view, move your cursor to an index number and press <Enter>. Figure 2 shows this alternate view. Fields and sub-
menu names may vary slightly in this view.

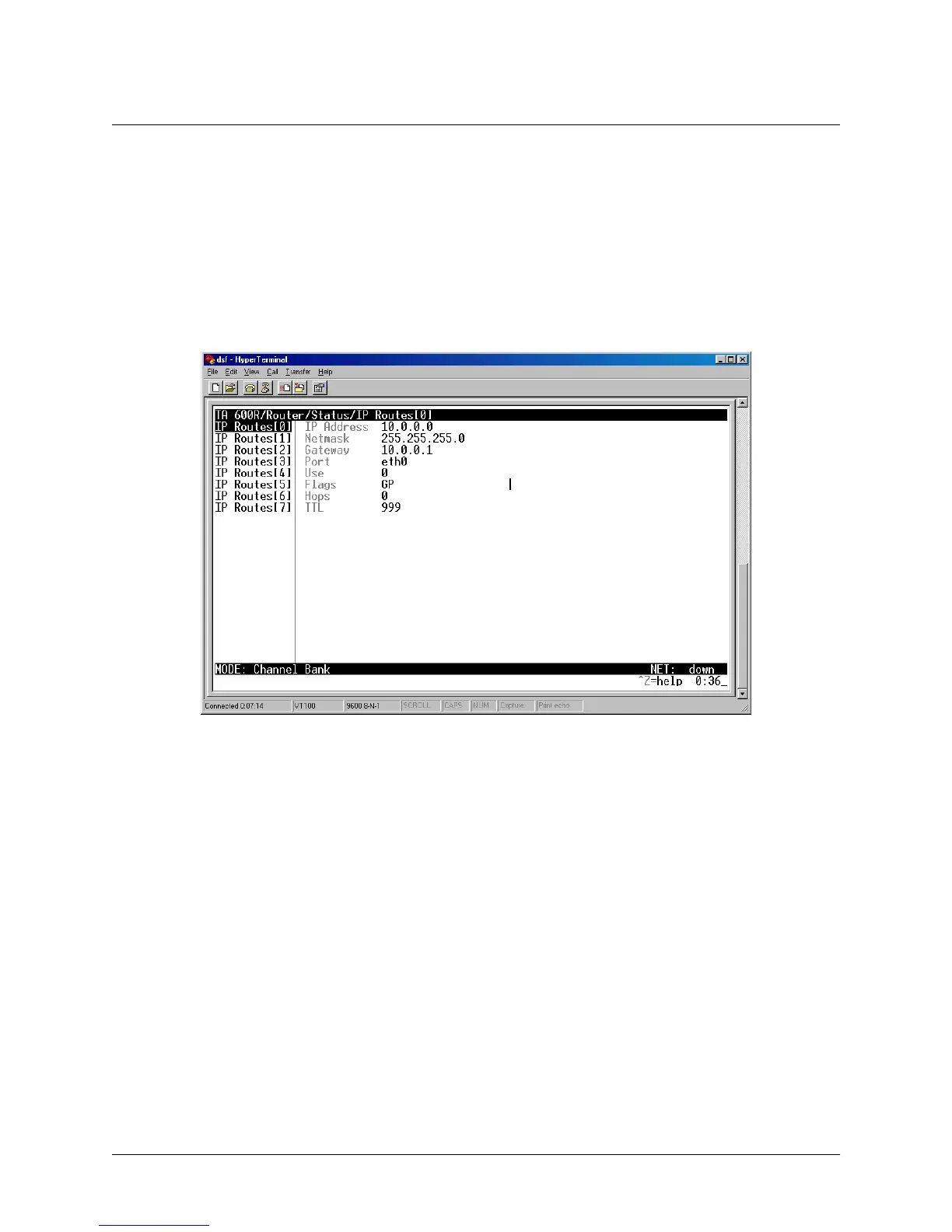

Figure 2. Alternate Menu View
