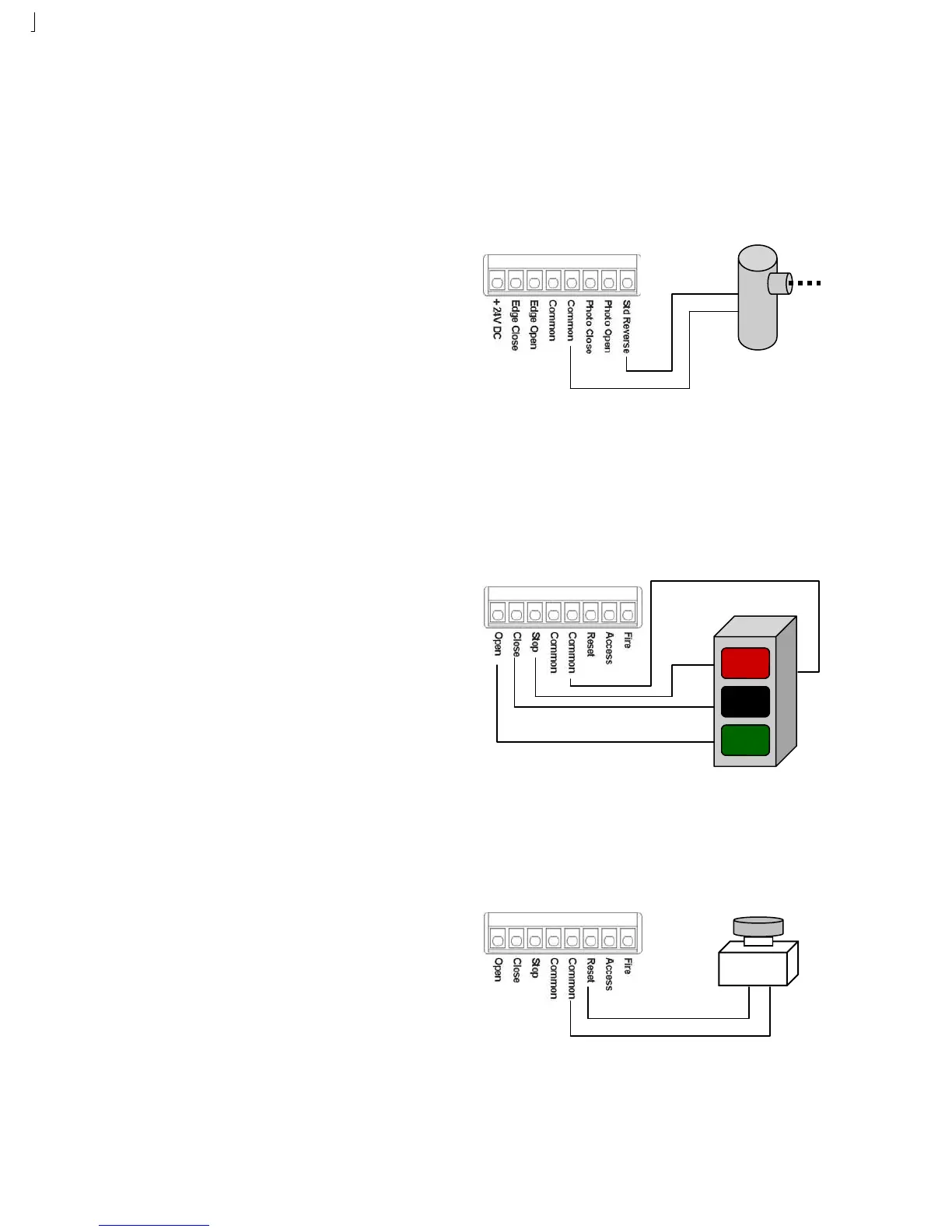

ACCESSORY CONNECTIONS
STANDARD REVERSE CONNECTIONS:
The Standard Reverse Terminal is for applications when an external device may be used as a standard reverse. For example:
Photo Sensors connected to this terminal will operate the same as a Reverse Loop. This connection should not be used for
Safety Reverse Devices. Use Edge and Photo inputs for proper Safety connections.
OPEN, CLOSE, STOP CONNECTIONS:
The gate operator may use an external Open, Close, Stop (3-Button) to control the gate. The controller has built-in button
controls above each terminal for setup and testing.
EXTERNAL RESET CONNECTION:
An external Reset Button may be connected to the Reset Terminal and used to reset the operator during Hard Shutdown
situations. During a Hard Shutdown, the operator can only be reset through the reset input or reset button on the left side of
the controller. The Reset Input can also be used during installation to reset the operator settings.
Standard Reverse Input:
1. Input is inactive when gate is closed or in the open cycle.
2. When gate is open and Time Delay Close is ON, an input will
reset the Time Delay Close.
3. When gate is open and Time Delay Close is OFF, an input will
prevent the gate from closing.
4. When gate is closing, an input will reverse the gate.
Connecting Standard Reverse Devices:
1. Connect to STD REVERSE and COMMON
2. For Devices that use 24VDC power, connect power to +24VCD
and COMMON
Standard
REVERSE
Device
Open, Close, Stop Input:
1. OPEN: Allows external input to OPEN gate.
2. CLOSE: Allows external input to CLOSE gate.
3. STOP: Allows external input to STOP gate.
Connecting Standard Reverse Devices:
1. Connect Open Button to OPEN and COMMON.
2. Connect Close Button to CLOSE and COMMON.
3. Connect Stop Button to STOP and COMMON.
OPEN
CLOSE
STOP
Reset Input:
1. Allows external input to reset gate operator during a Hard
Shutdown.
2. Allows external input to reset operator settings during
installation.
Connecting External Reset Devices:
1. Connect Reset Button to RESET and COMMON.
External
Reset
To Next Page
