GATE OPERATOR INSTALLATION
C
ONCRETE PAD SIZE & LOCATION:
The CSL2000 vehicular gate operator is designed to be mounted on a concrete pad. Select a location for the gate operator to
be installed. For pad location and size:
1. Determine the location for the operator to be installed. (Front Mount v. Rear Mount)
2. Follow all local building codes to determine the required depth of the concrete pad. The
average concrete pad should be 24” wide x 24” long x 24” deep.
3. Extend the pad 4” above ground and 24” below ground.
4. When the exact location of the operator can be predetermined, all conduits may be located in
the concrete pad terminating directly under the operator. Extend each conduit a minimum of
1” above the level of the concrete pad. See the Conduit Location diagram below. It is
suggested to install a minimum of four (4) conduits: (1) High Voltage Conduit, (1) Low
Voltage Conduit , (1) Loop Lead Wire Conduit, (1) Accessory Conduit.
5. When the exact location of the operator can not be predetermined, bring all conduits up to
one side and terminate in a Bell Box. Make connections to the operator using water-tight flex
conduit.
6. Form the concrete pad as shown and pour concrete. Allow the concrete to cure for 48 hours before removing the forms and
mounting the operator.
7. Do not place mounting bolts in the concrete while pouring. Bolts may drift in wet concrete making the operator location inaccurate.
8. NOTE: The path of the gate and gate track must be installed on concrete. The average gate track concrete should be a minimum of
10” wide x 12” deep the entire length of the gate track and travel. Failure to place the gate track on concrete can result in track
movement and cause gate failure or derailment.

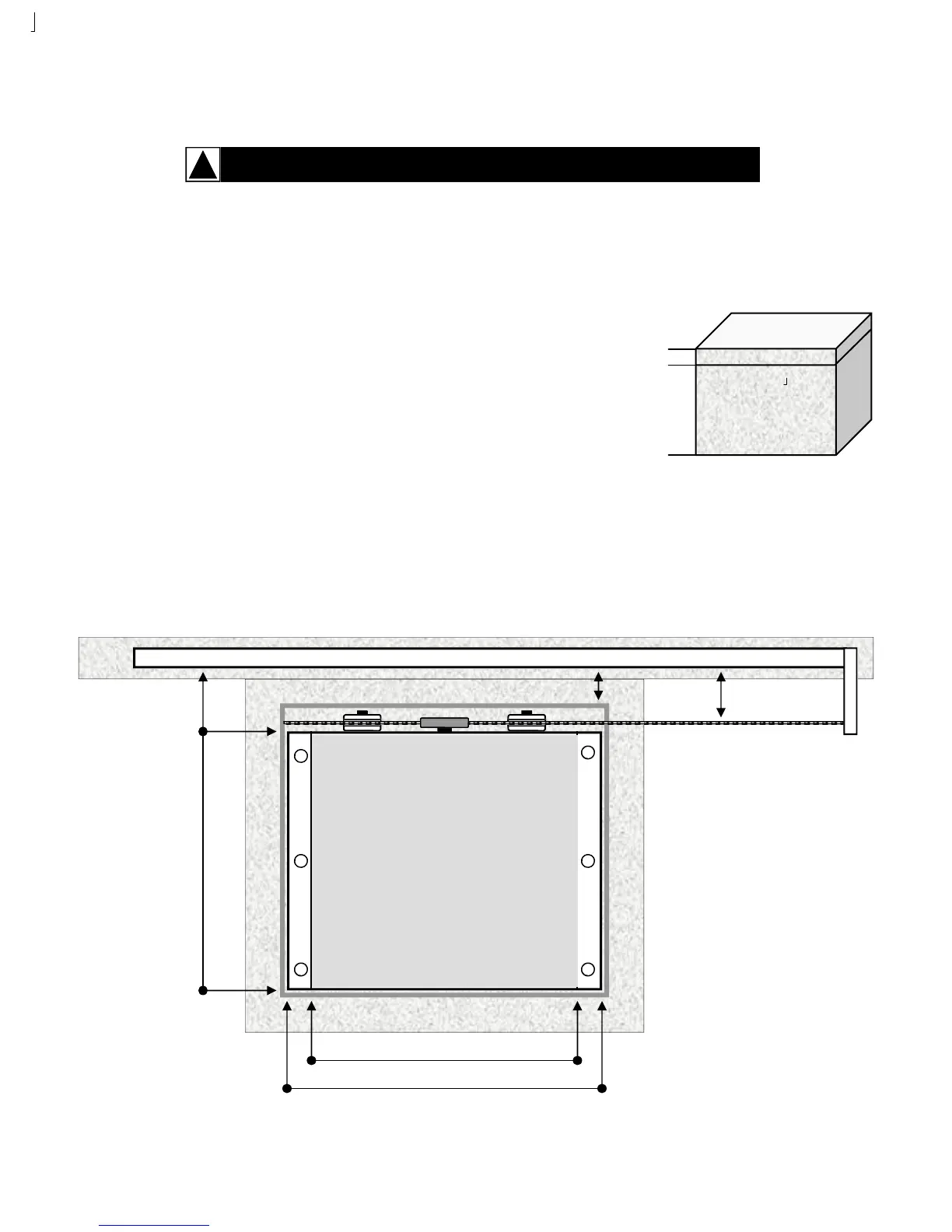

24”
4”
24”
24”
Available
Conduit
Area
14” Wide x 12.5” Deep
GATE (2” x 2” Frame)
1.25” Distance From
Gate To Cover
Gate
Bracket
3.5”
Distance From
Gate to Operator
Frame (3.5”)
12.5”
2.75”
Distance From
Gate To Chain
14”
17”
WARNING: Install over-travel stops at both ends of the gate rail or track for all types
of installations to help prevent the gate from derailing.
!
