IFR Approach Plates
The EFIS can display an IFR approach plate if you have the optional Seattle Avionics Chart data. The
Seattle Avionics data is stored on the system USB memory stick plugged into the back of the unit.
The approach plates are geo-referenced and will
display current aircraft position (if on the approach
plate area). If a traffic receiver is installed, traffic
should be displayed on the approach plate. If the
selected chart has the geo-referenced data, it will
show a green and yellow dot at the geo-reference
points.
WARNING: It is the user’s responsibility to verify
that the approach plates in the EFIS
are current and up to date before
using.

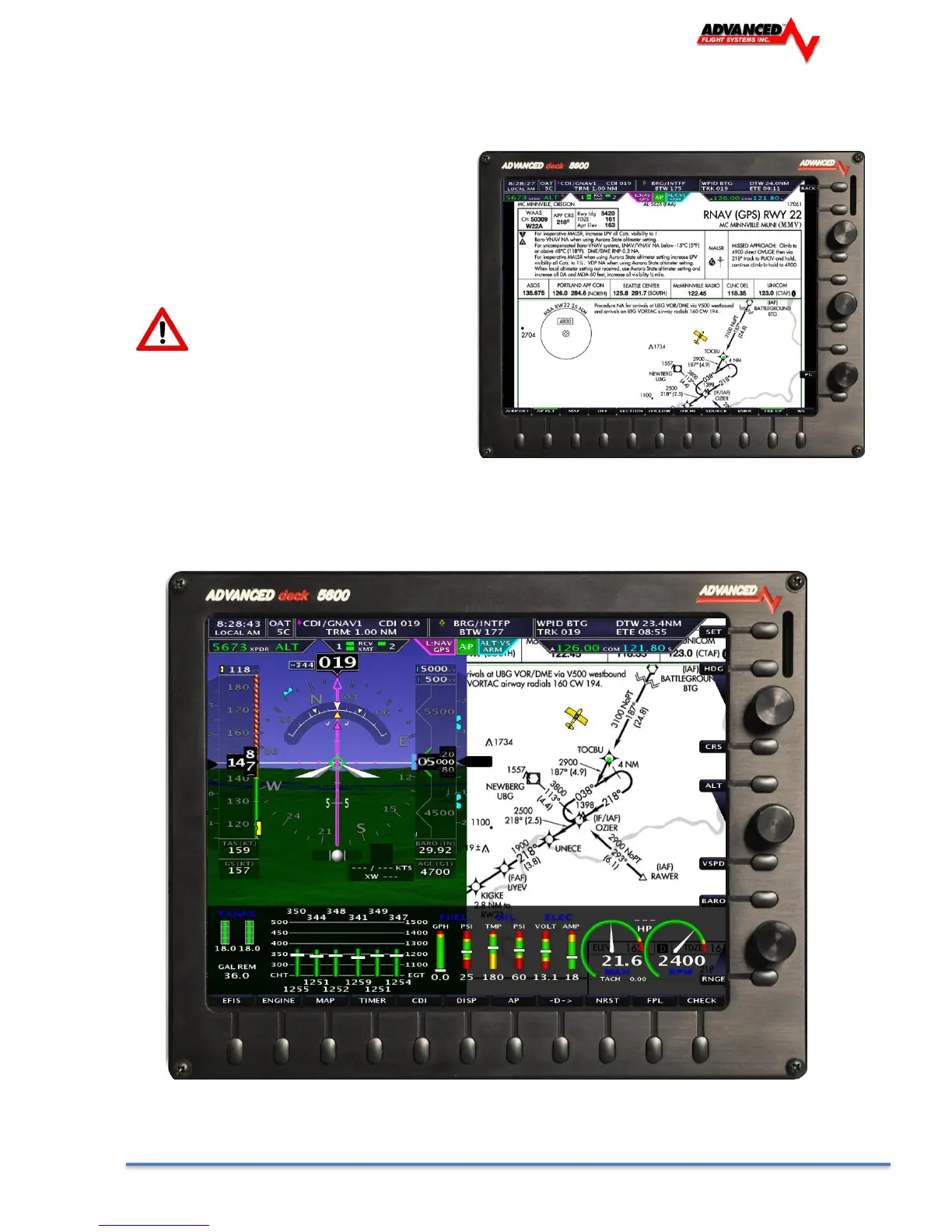

Split Screen Approach Plate
