Advanced Instruments Anoxomat Mark II CTS User Manual

Chapter 3 Optional functions
25
Anoxomat Mark II CTS User’s guide

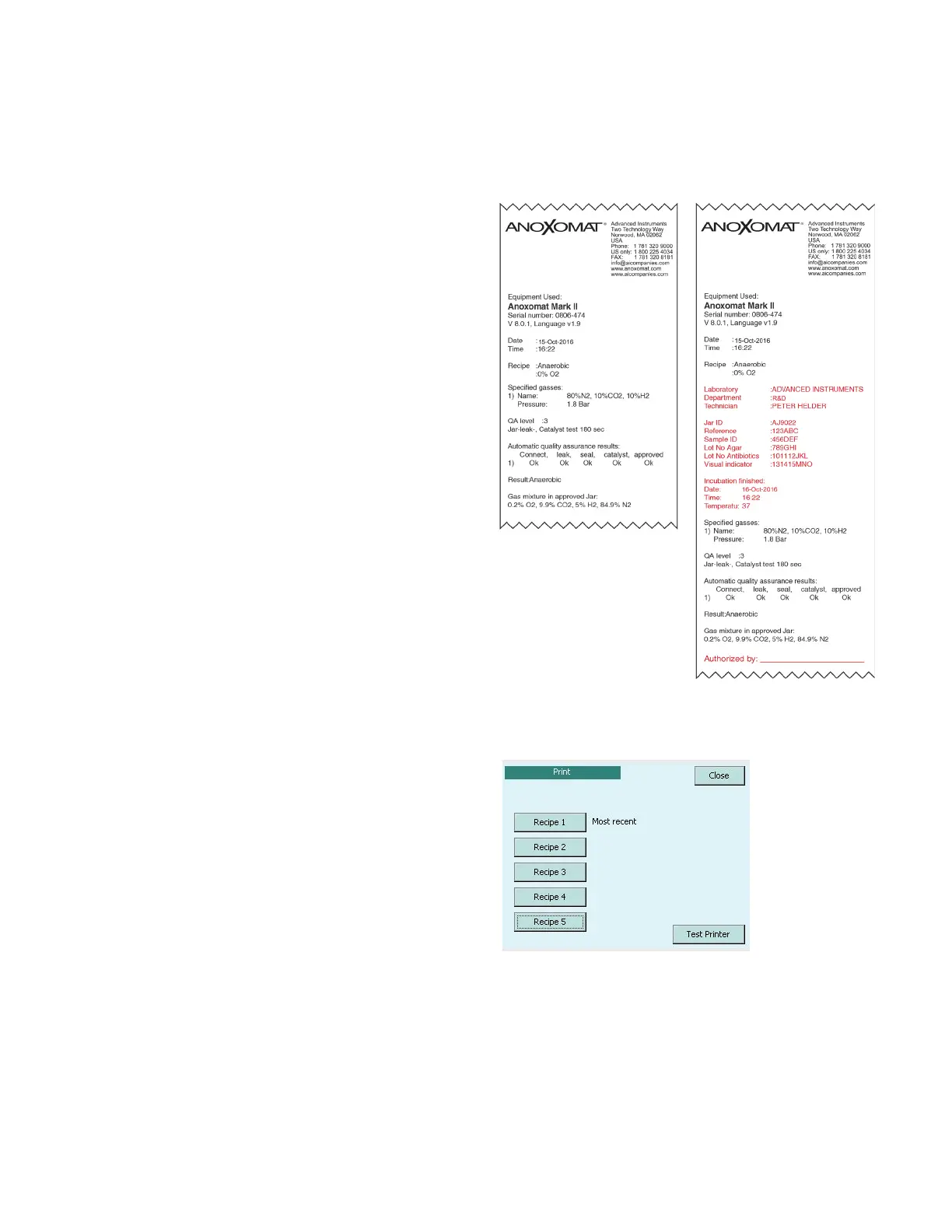

Fig. 3.7: Printout
Fig. 3.8: Printout with registration input
Fig. 3.9: Print last recipe
3.7 Activating pre-programmed or user-defined recipes
To use pre-programmed or user-defined recipes, press
Saved recipes on the Main screen. The Programmed
Recipes screen will appear. Press the recipe button.
The recipe is now active and will be listed on the
Main screen.
3.8 Thermal/dot matrix printer
Once you have purchased, installed and activated the
thermal or dot matrix printer, you can request a printout
of each recipe run on the Anoxomat.
A detailed printout (Fig. 3.7) of each jar can be attached
to the lids using small clips available from Advanced
Instruments, thereby eliminating any mix-up of jars.
If the optional Registration Input screen was configured
and activated in your Anoxomat, the additional
information will be included on the printout (Fig. 3.8).
After a recipe has completed its test, you will see a
prompt to print out the recipe just finished. The recipe
can also be printed out at a later stage. By selecting
Print at the bottom of the Main screen, you have
the option of printing or reprinting the last five
recipes (Fig. 3.9).
