332P310 Rev1
(3325 Service Manual)
Page 2 of 3

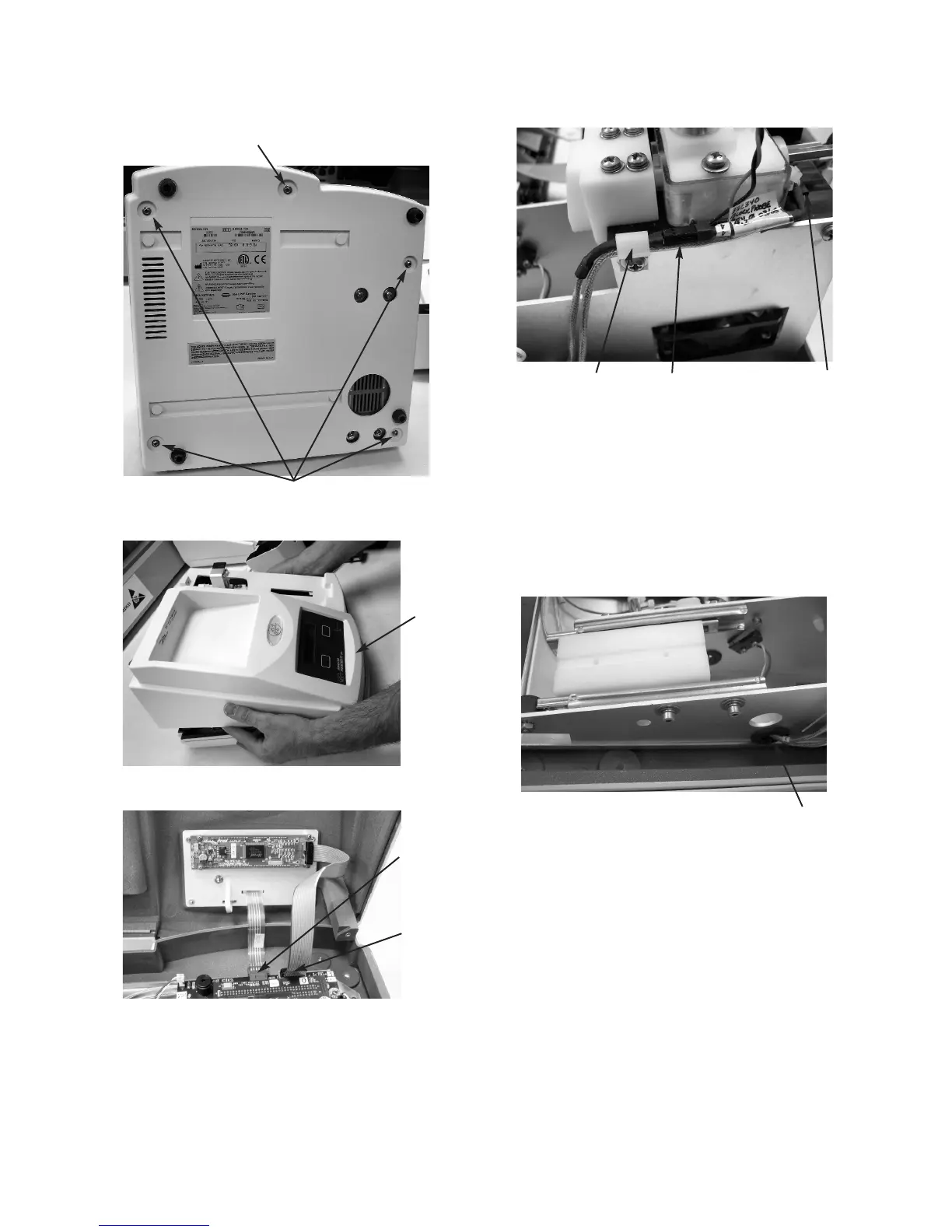

7. Disconnect the block probe cable connec-
tor (G) and the sample probe cable con-
nector (H) from the probes. Carefully
pull the cables out of the cable clamp (I)
and through the grommet (J) in the right
side of the sample handling assembly
bracket.
8. Disconnect the actuator switch cable (K)
from connector J1 of the circuit board
assembly. Disconnect the sample han-
dling assembly main wiring harness (L)
from the circuit board assembly.
I
G
H
J
D
E
F
C
C (Some units may not have this screw.)
