11

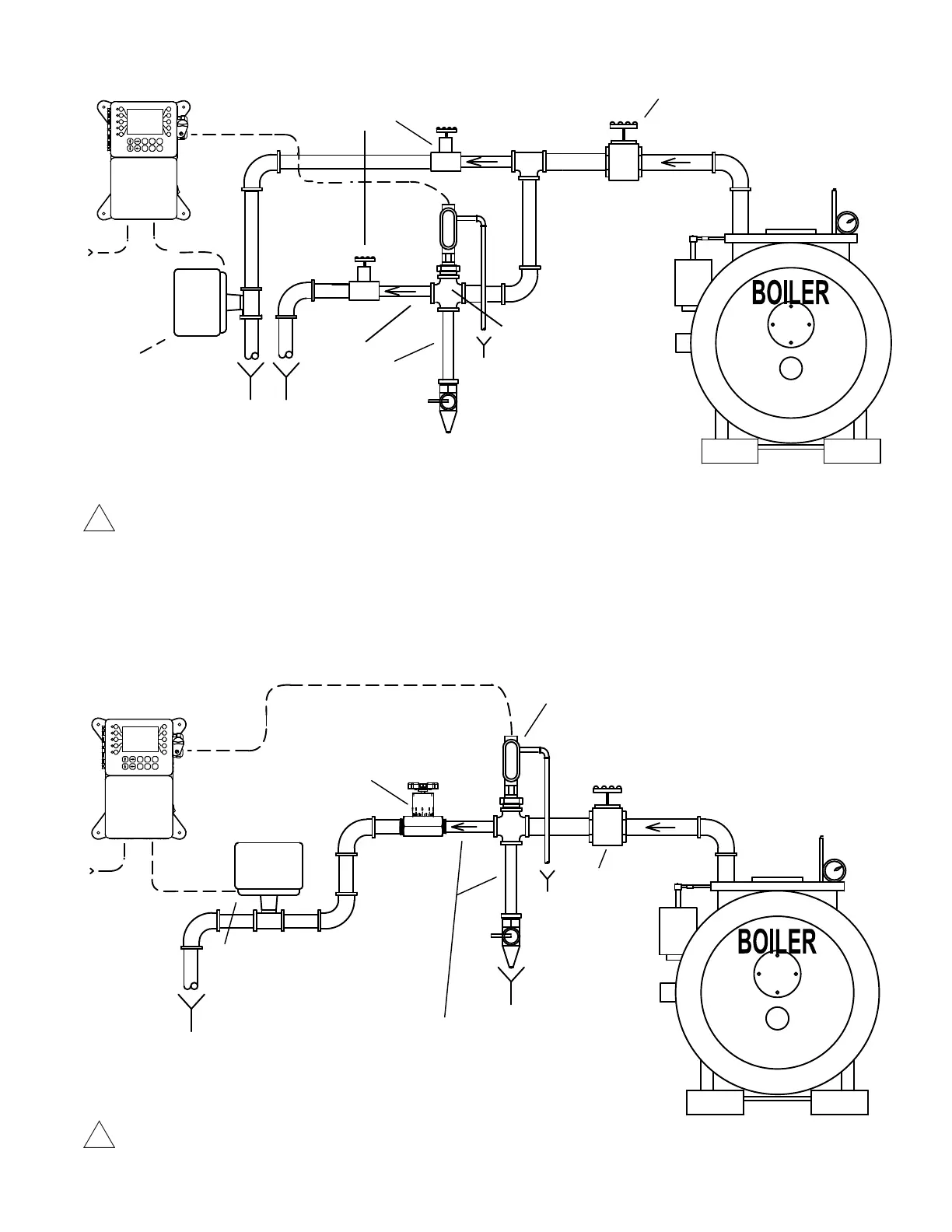

Typical Continuous Sampling Installation
Throttling device
1/2" pipe
bet ween probe
and throttle
device and
f lush valve
Electrically
actuated
blow down
valve
Electrode within a 1"
cross wi t h el ectrical
connection vented
Fully ported
gate or ball valve
1" Continuous
blow down line
3
4
5
2
1
8
9
0
7
6
SET UP
RUN
CANCEL HELP BACK
ENTER HOME
!
Warning - Do not use on bottom blowdown lines, only continuous or surface blowdown lines.
Typical Timed Sampling and Sample and Hold Boiler Installation
Throttling device
within 24” past probe
Electrode within a 1"
cross wit h electrical
connection vented
1/2" pipe between
probe and throttle
device and t o the
f lush valve
Electrically actuated
blow down valve
To drain
Fully ported
gate or ball
valve
1" Continuous
blow down line
3
4
5
2
1
8
9
0
7
6
SET UP
RUN
CANCEL HELP BACK
ENTER HOME
!
Warning - Do not use on bottom blowdown lines, only continuous or surface blowdown lines.
