Advantage Controls MegatronXS User Manual

34
SOLENOID
COM
N.O.
1
648
10
119
7532 1 2
COM
N.O.
MBWB 1036
COM
N.O
N.C
LIMIT SWITCH
MOTORIZED
BALL
VALVE
M
N.C.
GND
MBWA 1075
LD2

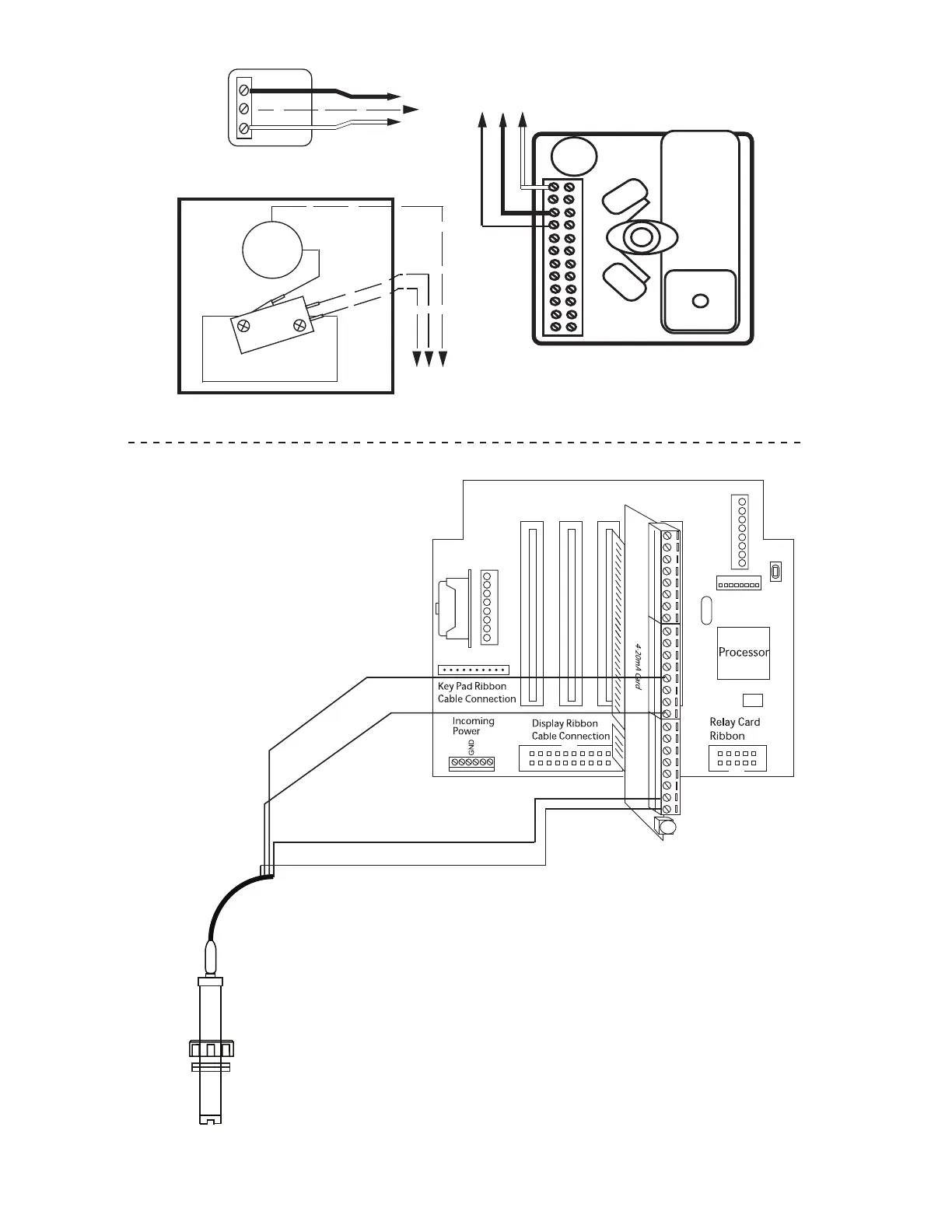

Wiring for
MegaTron XS
Refer to
manual for
additional
information
XS Megatron Main, Rev.
VDC Output
Connections
Gnd
Gnd
-12
-12
+12
+12
+5
+5
Aux Flow Inputs
+5
Gnd
Gnd
Input 1
Input 2
Input 3
Input 4
LED
Cable
Comm Card
Slot
LED
Input 1 +
Input 1 -
4-20mA
Slot
Open
System
Slot
+12
-12
+12
-12
+5
+5
ORANGE (+4-20)
BROWN (-4-20)
RED (+) 12 VDC
Battery
BLACK (ground)
Note: The brown wire to the mA input (-)
may be green instead of brown on some
cables.

Advantage Controls MegatronXS Specifications

General

Brand	Advantage Controls
Model	MegatronXS
Category	Controller
Language	English
