Chapter 2
Chapter 2 installation Guideline 2
-9
2.4 Multiple Module Hookup
The Figure below is an example of how ADAM modules are connected
in a multiple module network:

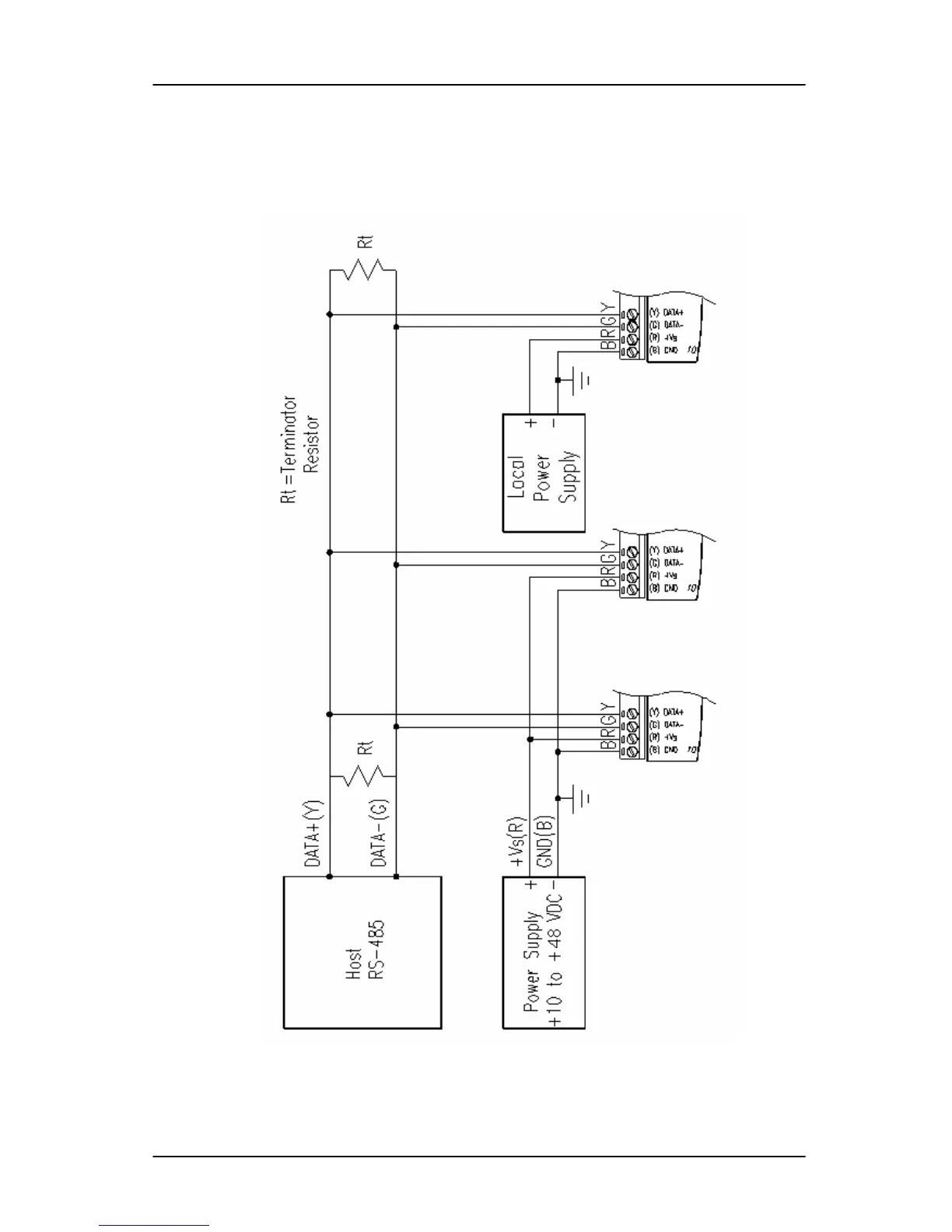

Figure 2-4 Multi-module Connection
