Advantech ADAM 4100 User Manual

I/O Modules
3-
6 ADAM 4100 Series User’s Manual
3.3 ADAM-4118 8-channel Thermocouple Input Module
The ADAM-4118 is a 16-bit, 8-channel Thermocouple input module that
provides programmable input ranges on all channels. It accepts Various
Thermocouple inputs (Type J, K, T, E, R, S, B) and provides data to the
host computer in engineering units (
o
C) In order to satisfy various
temperature requirements in one module, each analog channel is allowed
to configure each individual range for several applications.

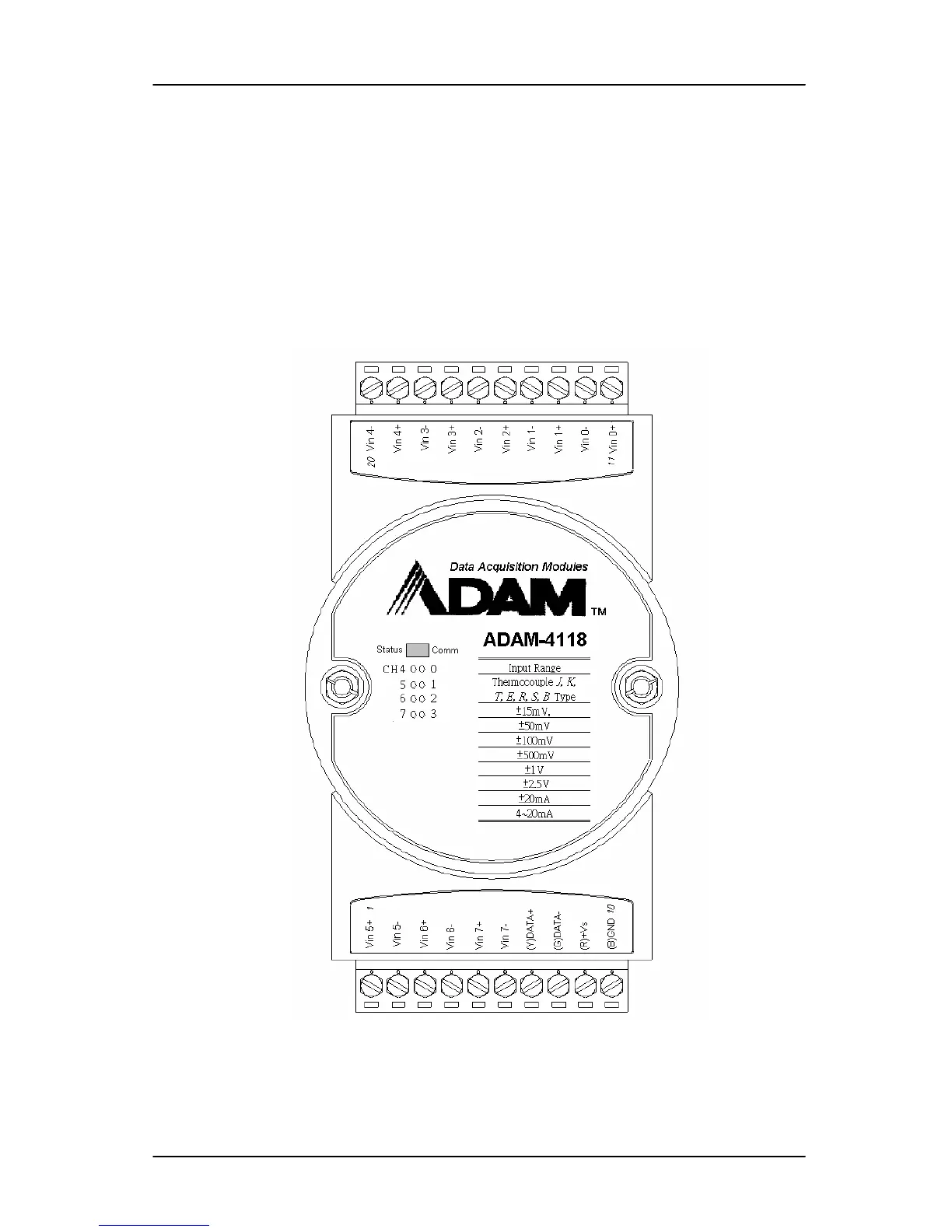

ADAM-4118
Figure 3-4 ADAM-4018 8-channel Thermocouple Input Module
