ADAM 4100 Series User’s Manual
Specification
Analog Input
z Effective Resolution: 16-bit
z Channel: eight differential and independent configuration channels
z High common mode :200Vdc
z ASCII command and Modbus protocol
z lnput Type: mV, V(support Uni-polar and Bi-polar), mA
z lnput Range: 0~150mV, 0~500mV, 0~1V, 0~5V, 0~10V, 0~15V
±150 mV, ±500 mV, ±1V, ±5 V, ±10 V, ±15V, 0~20mA,
±20 mA, 4~20mA
z Isolation Voltage 3000 VDC
z Fault and Over voltage: Protection up to ±60V
z Sampling Rate: 10/100 samples/sec(selected by Utility)
z Input Impedance 20 M
z Accuracy : Voltage mode : ±0.1% or better
Current mode : ±0.2% or better
z Zero Drift ±6µV/° C
z Span Drift ±25 ppm/° C
z CMR @ 50/60 Hz 92 dB min.
z Built-in Dual Watchdog Timer
z Built-in TVS/ESD Protection
z Power Consumption 1.2 W @ 24 VDC
Jumper setting

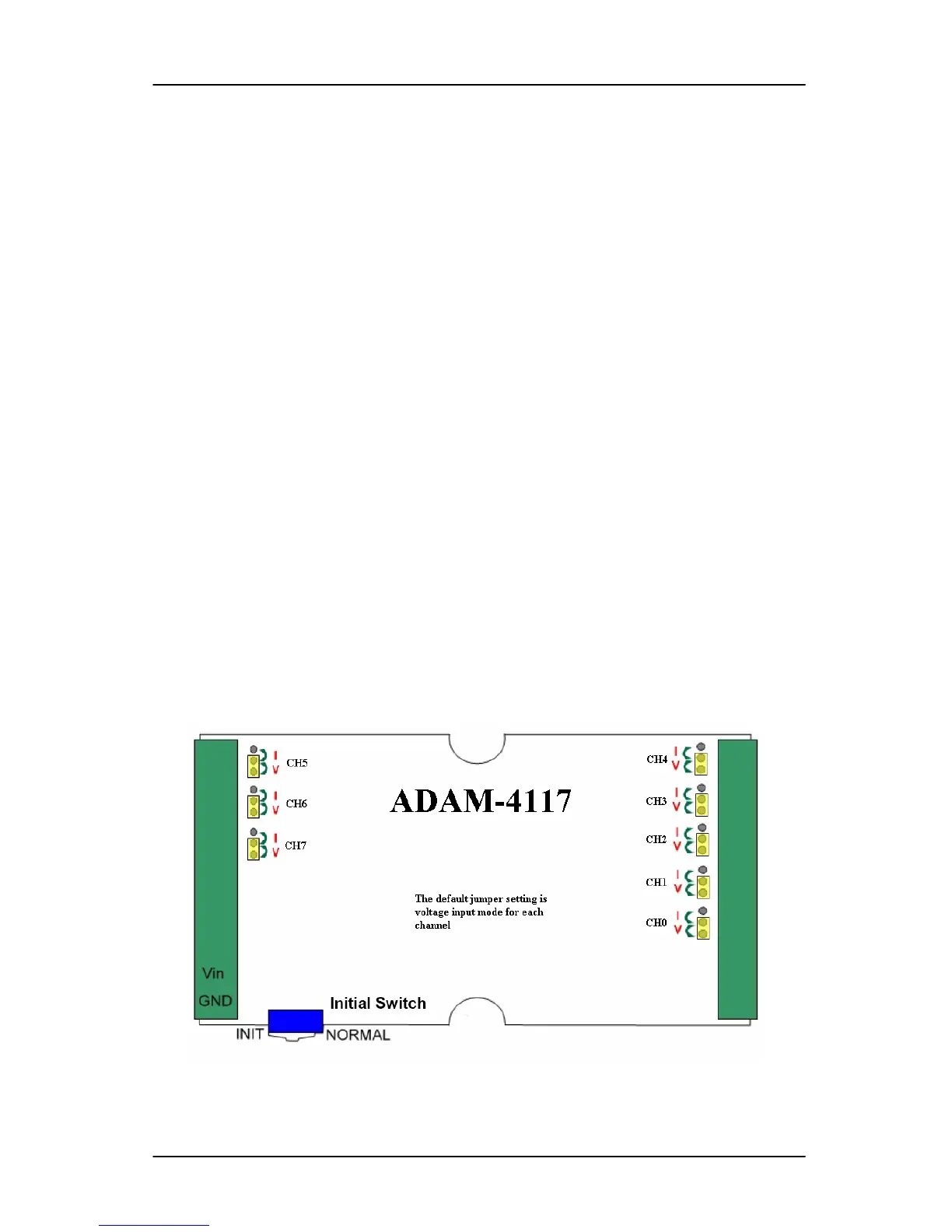

Figure 3-2 ADAM-4117 Jumper setting
