I/O Modules
3-
12 ADAM 4100 Series User’s Manual
Application Wiring

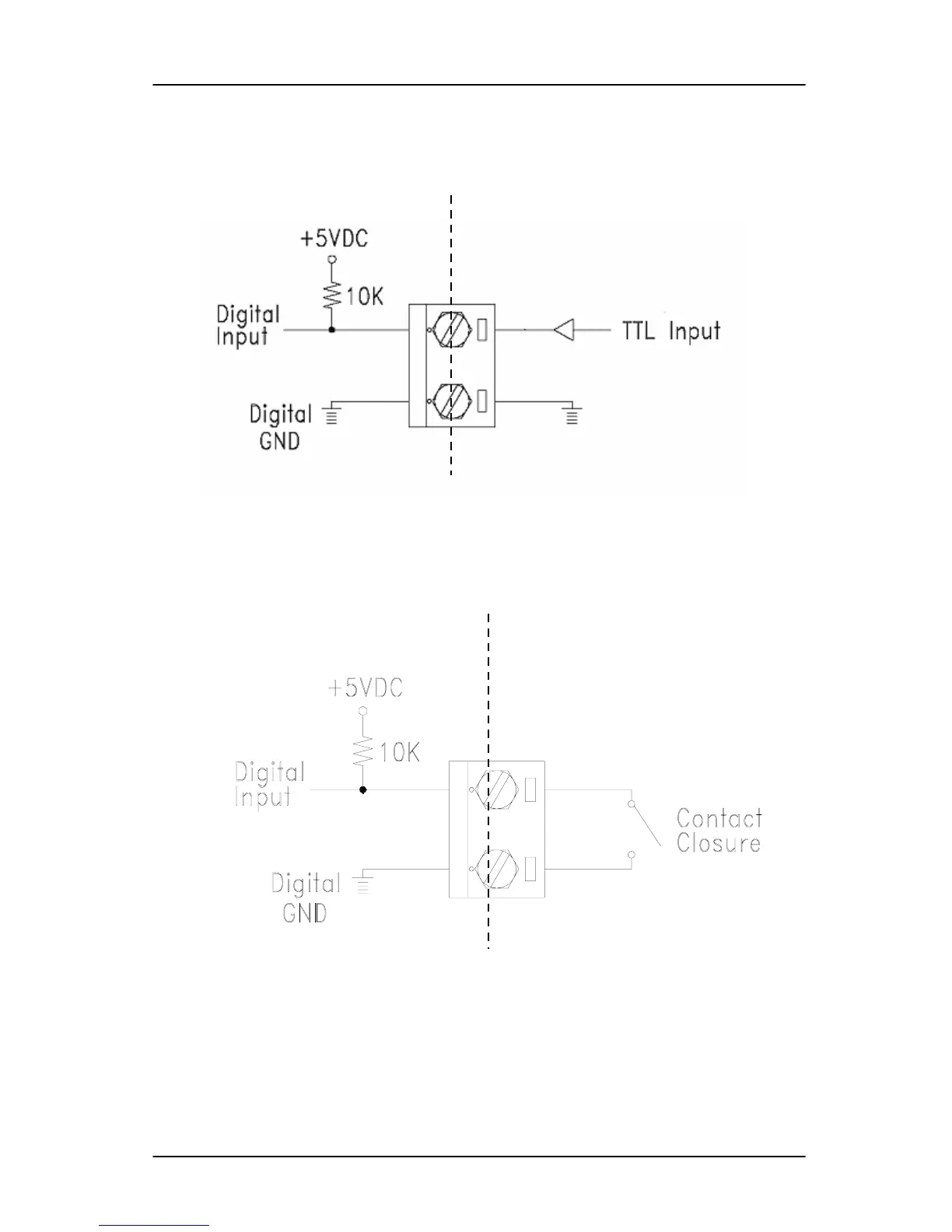

Figure 3-8 TTL Digital Input (ADAM-4150)
Figure 3-9 Contact Closure Input (ADAM-4150)
External
Internal
Internal
External
