Advantech ADAM-5510/P31 User Manual

ADAM-5510/P31 4-39
Chapter 4
Technical specifications of ADAM-5060
Table 4-17: Technical specifications of ADAM-5060
ADAM-5068 relay output module
The ADAM-5068 relay output module provides 8 relay channels of
Form A. Switches can be used to control the solid-state relays.
ADAM-5068

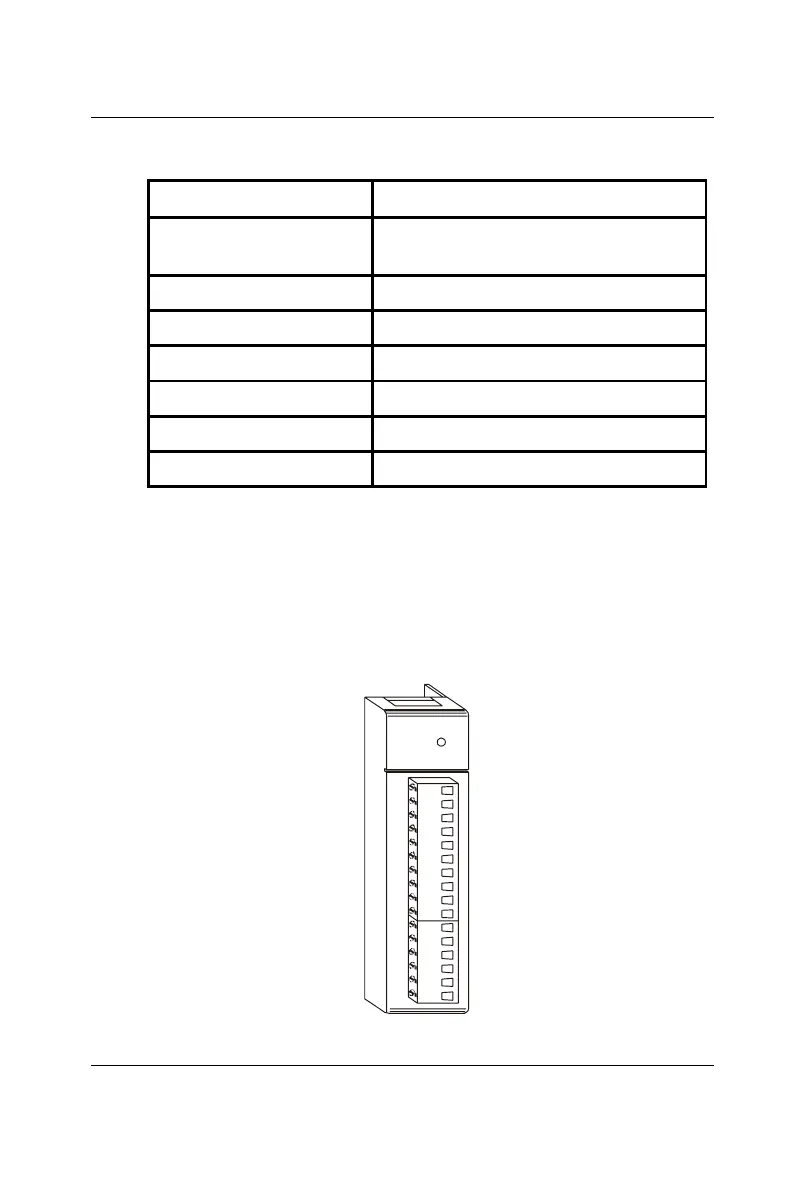

Figure 4-38: ADAM-5068 module frontal view
Points
6, two Form A and four Form C
Contact rating
AC: 125 V @ 0.6A; 250 V @ 0.3 A
DC: 30 V @ 2 A; 110 V @ 0.6 A
Breakdown voltage
500 V
AC
(50/60 Hz)
Relay on time (typical)
3 ms
Relay off time (typical)
1 ms
Total switching time
10 ms
Insulation resistance
1000 MΩ min. @ 500 V
DC
Power consumption
0.7 W
8 Relay
ADAM-5068
NO
0
0
COM
1
NO
1
COM
NO
NO
COM
NO
COM
NO
COM
COM
NO
NO
COM
2
3
4
3
4
5
5
6
7
6
7
1
16
COM
2
