Advantech ADAM-5510/P31 User Manual

ADAM-5510/P31 0-7
Chapter 0
4. Run the execution file “SIMU5000” on the “D” drive. The ADAM-
5510/P31 will be simulated as an ADAM-5000/485.
5. Press “Alt-X”, and then move the cursor to “Quit”, select “Yes”
and press <Enter>. The active directory will be changed to the
directory C:\5510.
6. Run the execution file “ADAM” in the directory C:\5510.
7. After displaying some processing messages, the screen shown in
Figure 0-3 will appear. This screen can be used for configuring and
calibrating ADAM-5000 I/O modules.

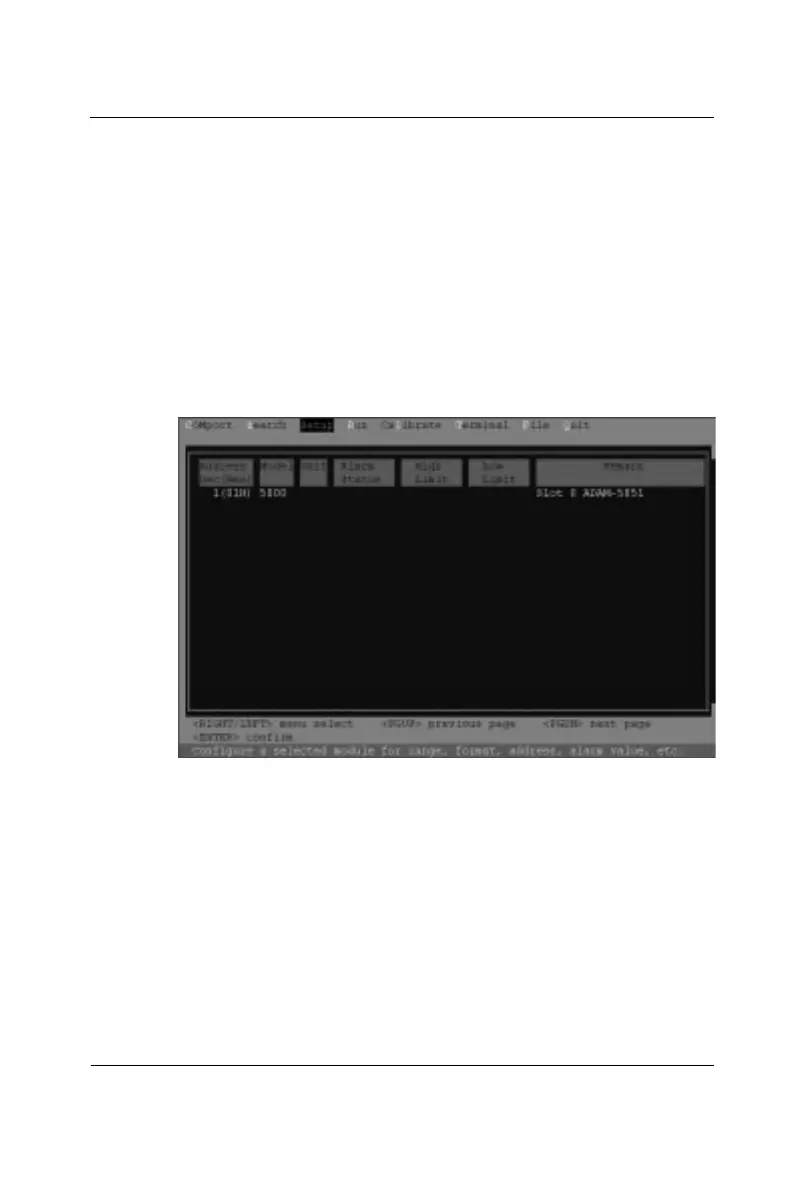

Figure 0-3: Utility/Configure menu screen
8. This menu screen consists of a menu bar at the top of the screen
and a status field that displays information about the connected
modules. When you first start the program, it automatically scans
for any attached modules and displays their data. Module charac-
teristics, module configuration parameters and input or output
values will be displayed in the status field.
