ADAM-5510/P31 2-7
Chapter 2
should be used.
DIN rail mounting
The system can also be secured to the cabinet by using mounting
rails. If you mount the system on a rail, you should also consider using
end brackets at each end of the rail. The end brackets help keep the
system from sliding horizontally along the rail. This minimizes the
possibility of accidentally pulling the wiring loose. If you examine the
bottom of the system, you will notice two small retaining clips. To
secure the system to a DIN rail, place the system onto the rail and
gently push up on the retaining clips. The clips lock the system on the
rail. To remove the system, pull down on the retaining clips, lift up on
the base slightly and pull it away from the rail.

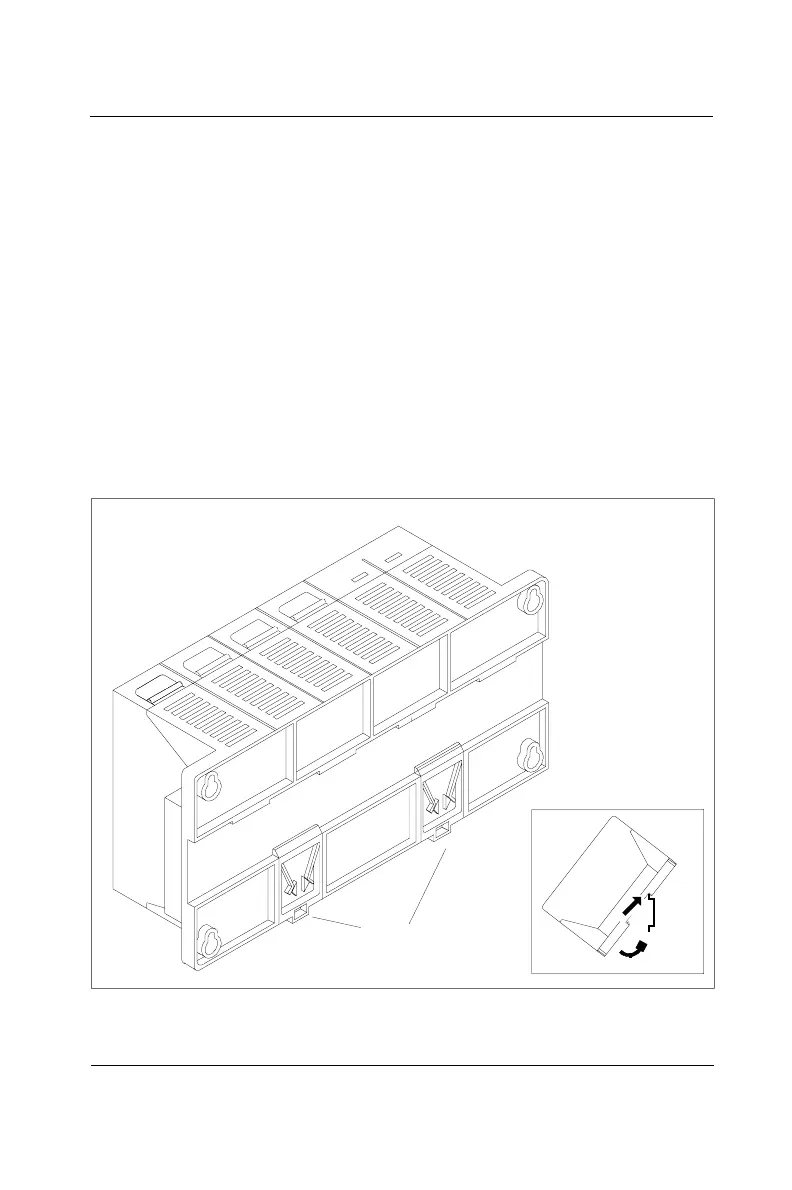

Figure 2-6: ADAM-5510/P31 rail mounting
