Advantech ADAM-5510/P31 User Manual

4-2 ADAM-5510/P31
I/O Modules
3 RTD
ADAM-5013
EXC 0+
SEN 0+
SEN 0-
EXC 0+
A. GND
EXC 1+
SEN 1+
SEN 1-
EXC 1+
A. GND
EXC 2+
SEN 2+
SEN 2-
EXC 2-
A. GND
16
1
4.1 RTD Input Module
ADAM-5013 3-channel RTD input module
The ADAM-5013 is a 16-bit, 3-channel RTD input module that features
programmable input ranges on all channels. This module is an extreme-
ly cost-effective solution for industrial measurement and monitoring
applications. Its opto-isolated inputs provide 3,000 V
DC
of isolation
between the analog input and the module, protecting the module and
peripherals from damage due to high input line voltage.
Note: Owing to the conversion time required by the A/D
converter, the initialization time of each ADAM-5013
module is 5 seconds. Thus the total initialization
time will be about 20 seconds if all 4 I/O slots in an
ADAM-5510/P31 main unit contain ADAM-5013
modules.
ADAM-5013

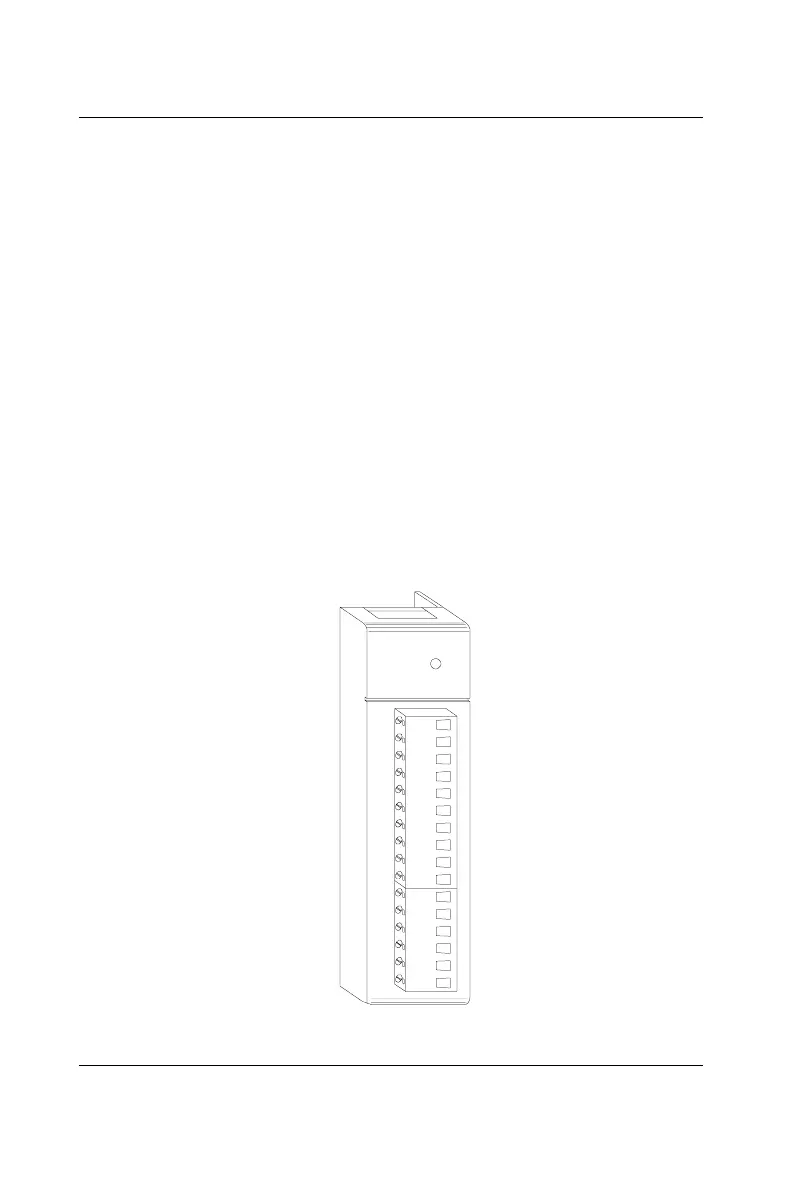

Figure 4-1: ADAM-5013 module frontal view
