I/O Modules
4.7 Relay Output Modules
ADAM-5060 relay output module
The ADAM-5060 relay output module is a low-cost alternative to SSR
modules. It provides 6 relay channels, two of Form A and four of Form
C.
ADAM-5060

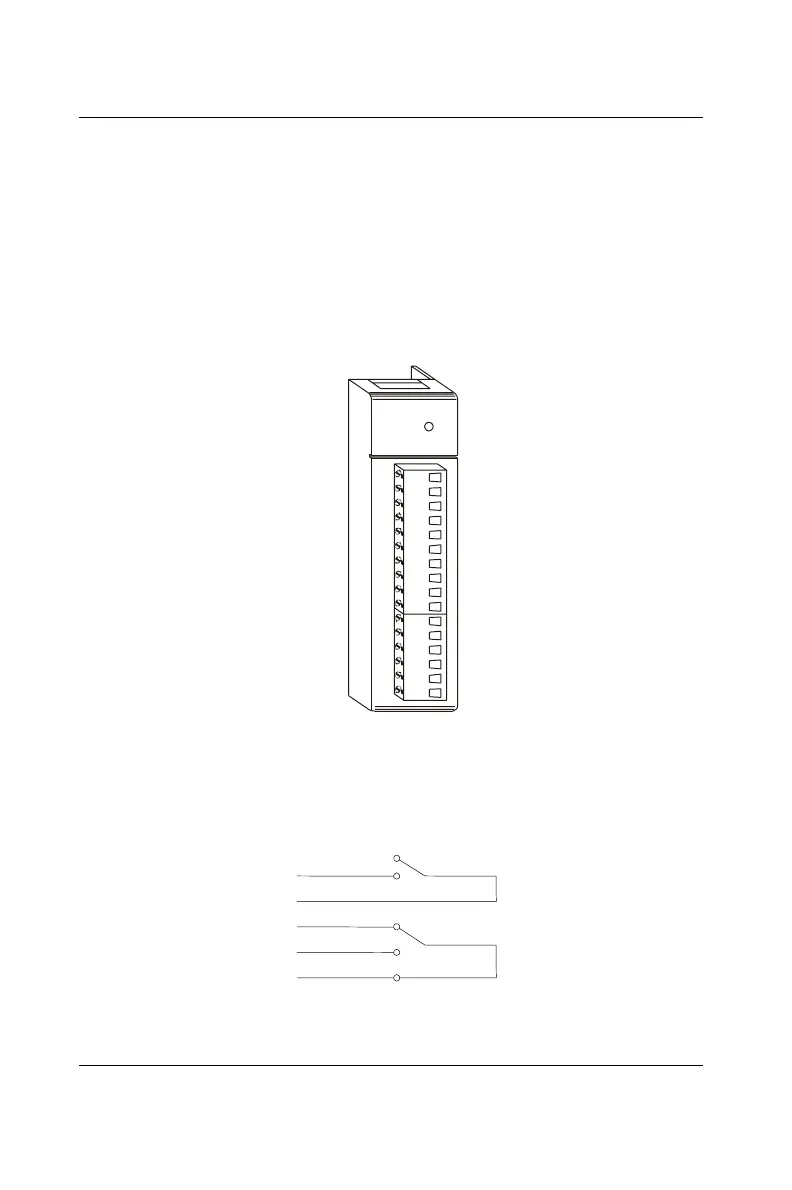

Figure 4-36: ADAM-5060 module frontal view
Application wiring
Figure 4-37: Relay output
NO
C
C
NC
NO
Form A
(NO)
Form C
6 Relay
ADAM-5060
NO
0
0
COM
1
NO
1
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
NO
NC
COM
2
2
2
3
3
3
4
4
4
5
5
5
1
16
