Advantech ADAM-5510/P31 User Manual

F-4 ADAM-5510/P31
ADAM-4000/5000 System Grounding Installation
Ø The shielding material of the wires should only be grounded on
one end as illustrated in the following diagram. This is to avoid
ground loop.

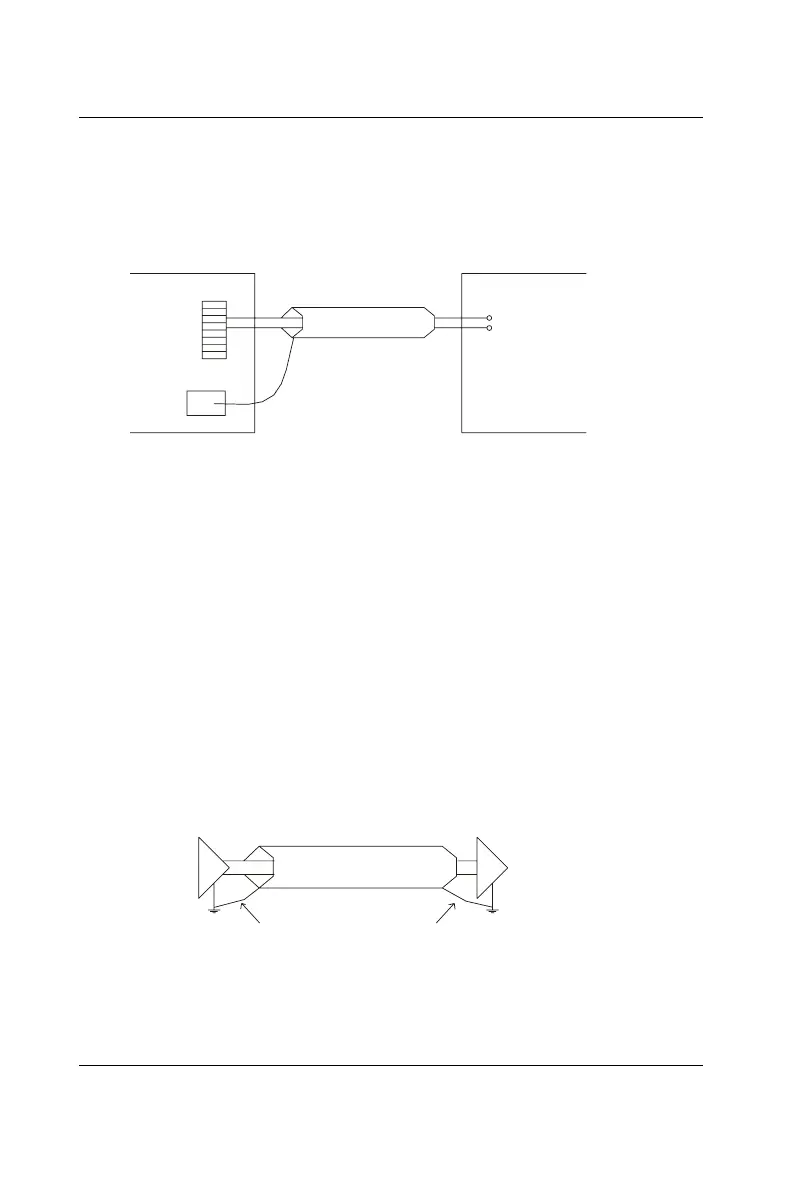

Figure F-3: Grounding for on-site facilities and ADAM-5000/4000
Systems
Ø Since shielded twisted-pair has been adopted for signal wires, only
DATA+ and DATA- of ADAM-5000 system should be connected.
And the shielding materials should be treated in the same manner
as with AI and AO signal wires, i.e. it should be connected to
Ground on only one end through the COM port on computer or on
ADAM-5000 system such as illustrated in the following diagram:
Figure F-4: Grounding for signal wires
AI
ADAM System On-Site Facilities
Grounding
PC
Gounded only on one end
DATA+
DATA -
