G-6 ADAM-5510/P31
Grounding Reference

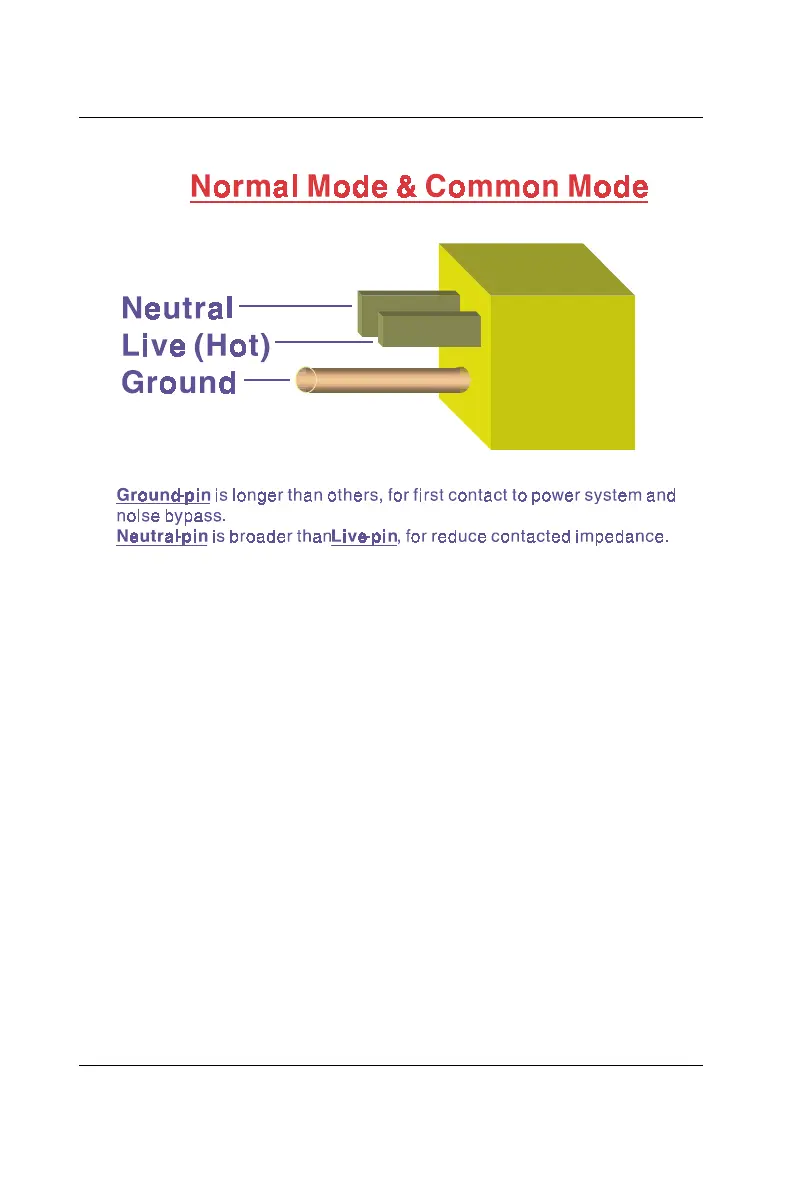

Figure G-4: Normal mode and Common mode.
• Ground-pin is longer than others, for first contact to power system
and noise bypass.
• Neutral-pin is broader than Live-pin, for reduce contact impedance.
