Advantech ADAM-5510/P31 User Manual

ADAM-5510/P31 2-5
Chapter 2
2.2 Module Installation
When inserting modules into the system, align the PC board of the
module with the grooves on the top and bottom of the system. Push
the module straight into the system until it is firmly seated in the
backplane connector. Once the module is inserted into the system,
push in the retaining clips (located at the top and bottom of the
module) to firmly secure the module to the system.

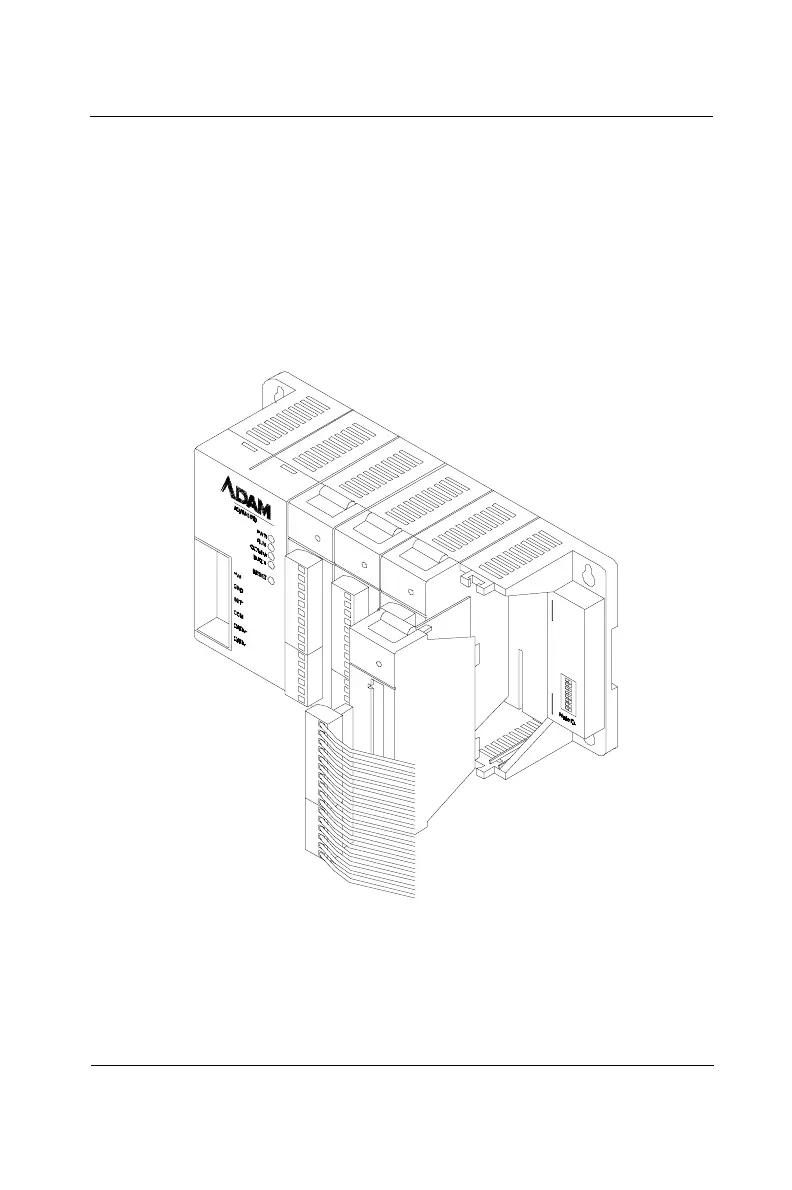

Figure 2-4: Module alignment and installation
