4-34 ADAM-5510/P31
I/O Modules
Compatible ADAM-5000 Series Main Units
ADAM-5056D is designed to be implemented within the following
Advantech ADAM-5000 series main units:
ADAM-5000/485
ADAM-5000E
ADAM-5510
ADAM-5510/P31
ADAM-5056D 16-channel Digital Output W/ LED Module
ADAM-5056D is a 16-channel digital output W/ LED module, which is
based on ADAM-5056. In addition to the original functions inherited
from its predecessor, the ADAM-5056D is further enhanced with the
following features:
LED display
16 LED indicators are added to the panel. Users can monitor the status
of each channel at a glance. When a LED indicator is on, it means that
this channel is now in logic level "1" status. When a LED indicator is
off, it means this channel is in logic level "0" status.

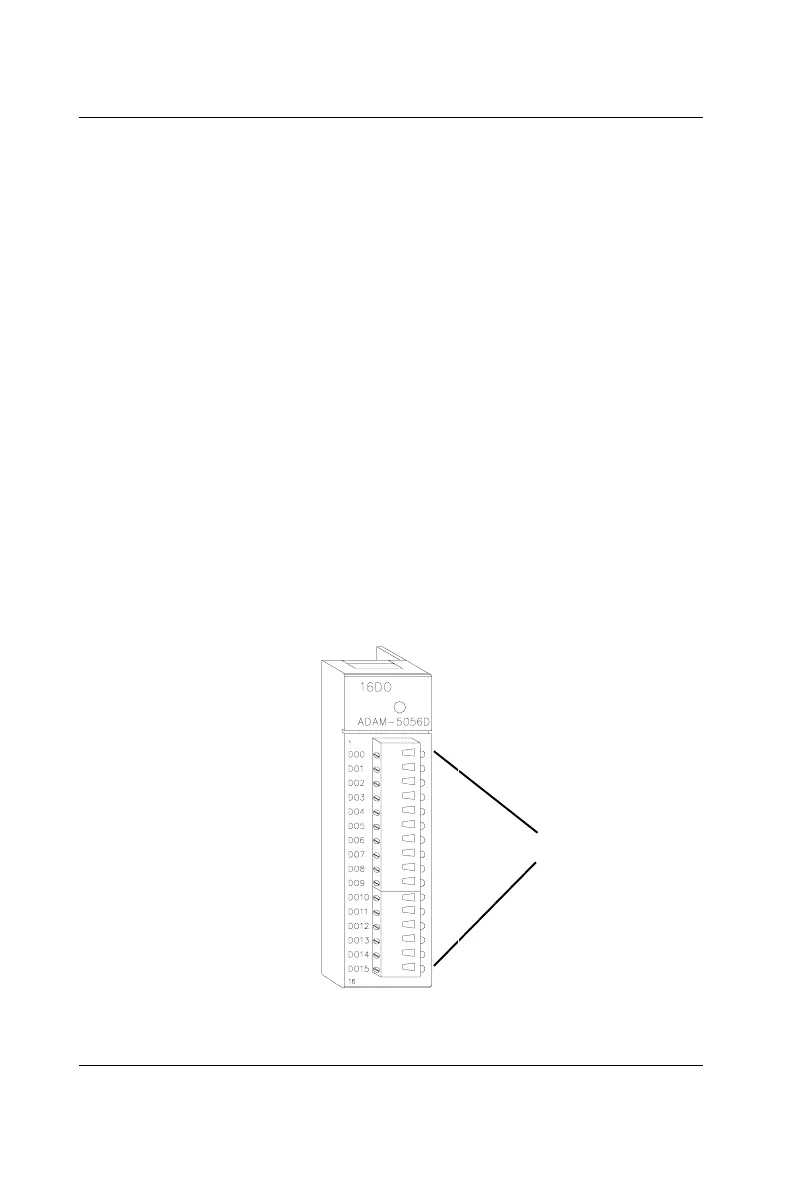

Figure 4-34: ADAM-5056D Module
LED indicators
