45 AIMB-784 User Manual
Chapter 3 BIOS Operation

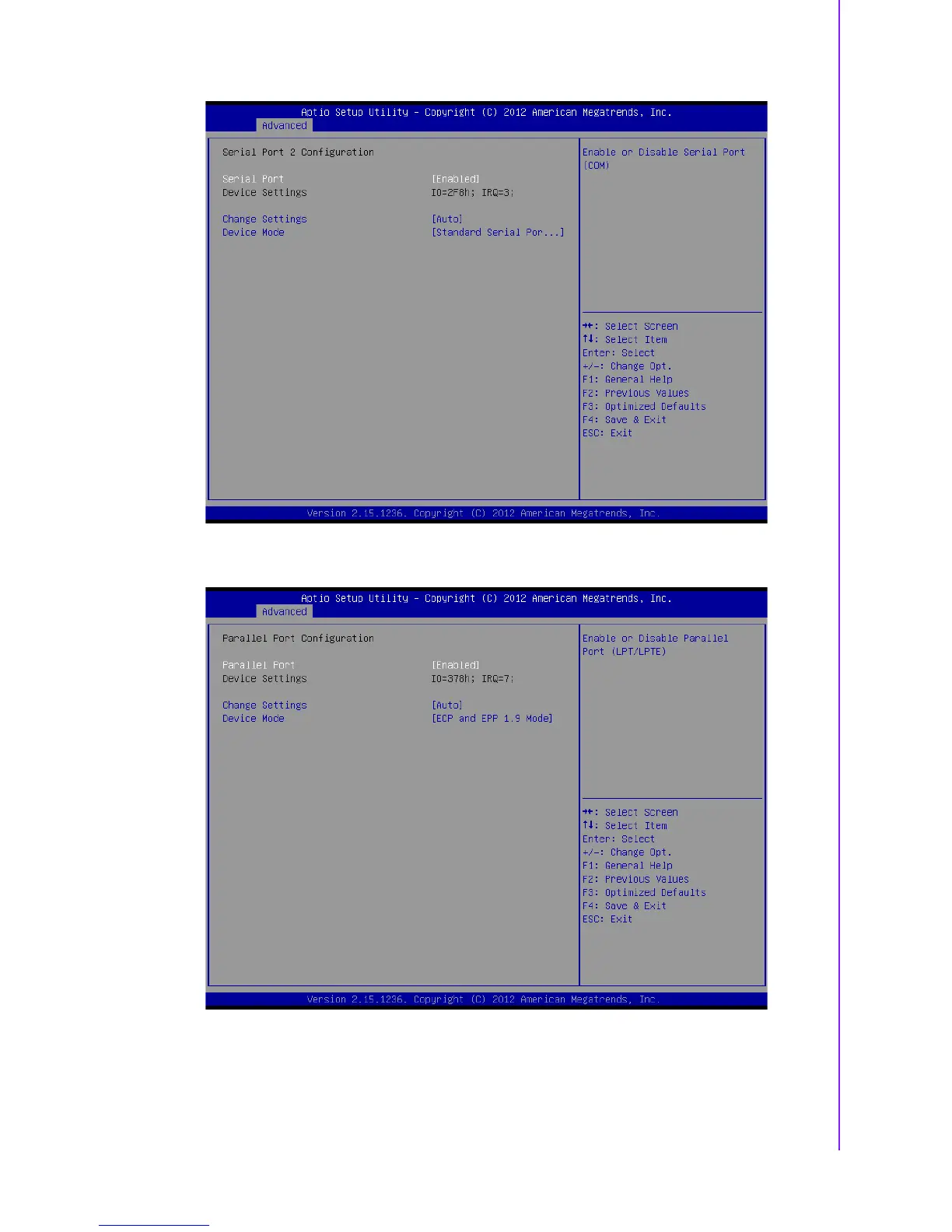

Figure 3.17 Serial Port 2 Configuration
Figure 3.18 Parallel Configuration
Serial Port 1 Configuration
– Serial Port
"Enable or Disable" Serial Port 1.
