51 AIMB-784 User Manual
Chapter 3 BIOS Operation
3.2.3 Chipset

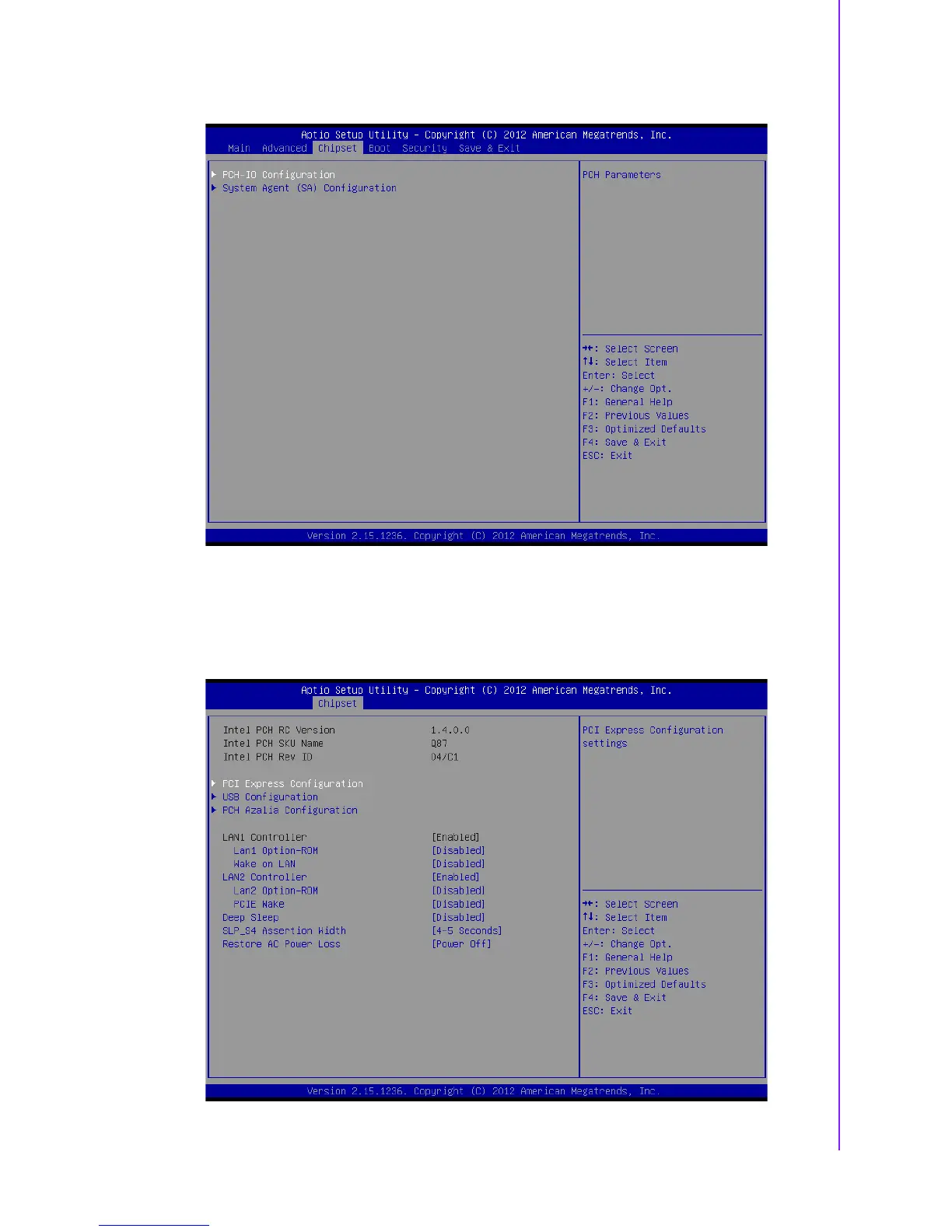

Figure 3.25 Chipset
This page provides information of the chipset on AIMB-784.
3.2.3.1 PCH-IO Configuration
Figure 3.26 PCH-IO Configuration
