Chapter 2 System Setup
2. Install a CFast
®
card containing the operating system.

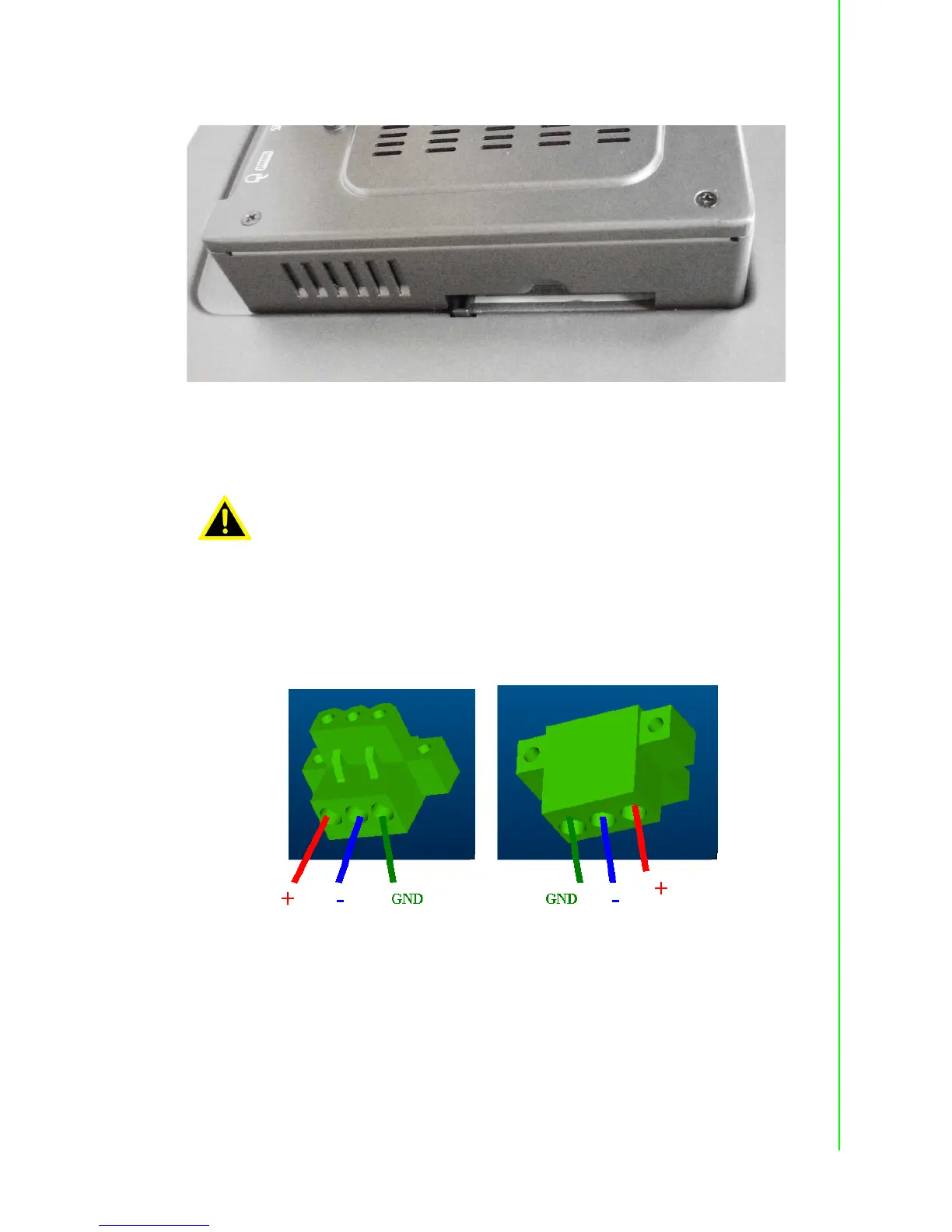

Figure 2.2 Install CFast Memory Card
(Mylar in accessory box can be attached to CFast card for easy extraction)
3. Connect the power connector to the 24 V
DC
power lines. The power lines can
either be of some power adapter or in-house power source.
Figure 2.3 Power Connector and Power Lines
Warning! It is suggested to turn OFF system power as you plug in or pull out the
memory card, even though the CompactFlash memory is hot swappa-
ble.
Il est suggéré de désactiver l'alimentation du système que vous bran-
chez ou retirez le carte mémoire, même si la mémoire CompactFlash
est remplaçable à chaud.
