25 TPC-xx51T/H User Manual
Appendix A Serial Port Settings

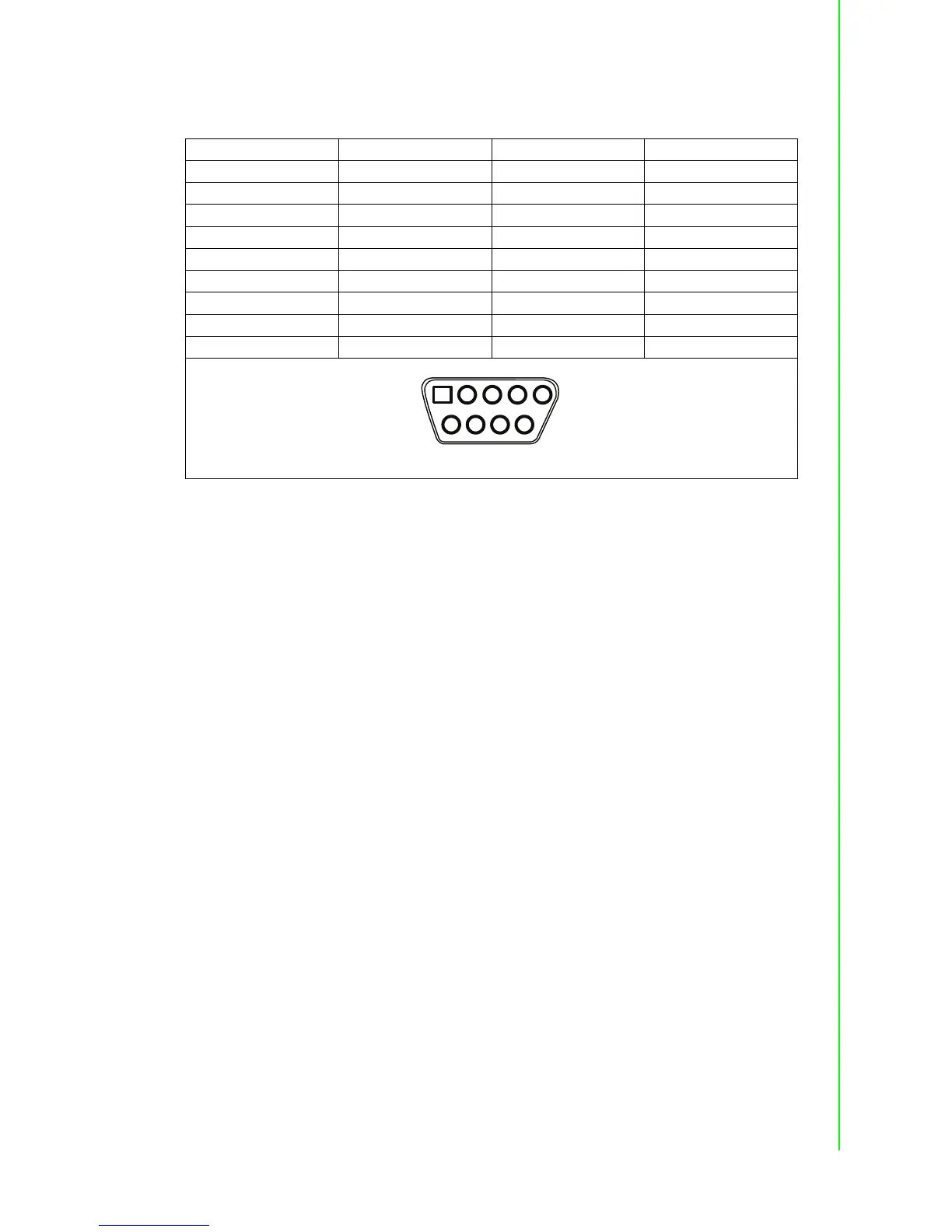

A.4.9 COM2 RS232/422/485 connector (CN16)
1654000056 D-SUB Conn. 9P 90D(M) DIP 070241MR009S200ZU
Pin RS232 RS422 RS485
1DCDTX-D-
2RXTX+D+
3TXRX+
4DTRRX-
5GNDGNDGND
6DSR
7RTS
8CTS
9RI
12345
6789
