TPC-xx51T/H User Manual 12

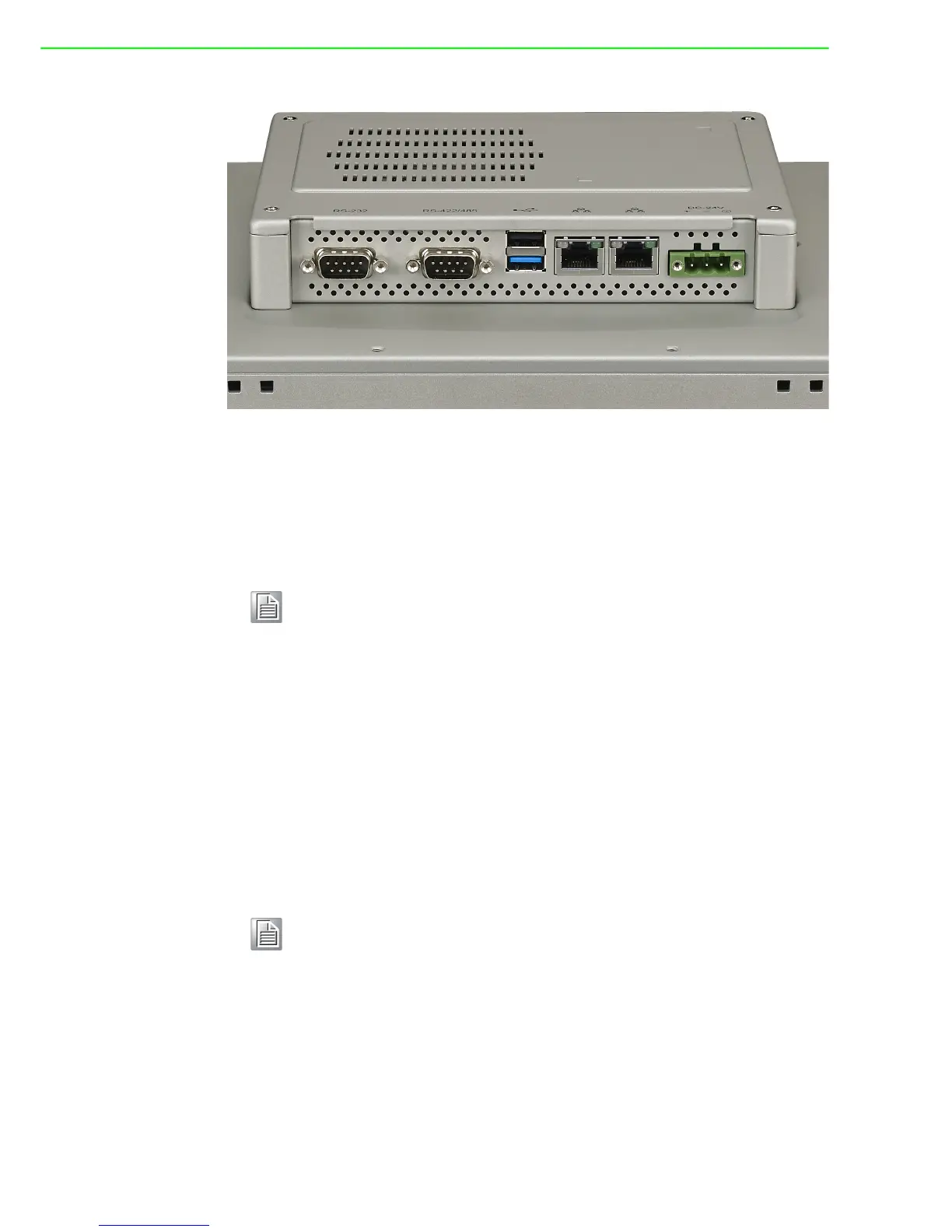

Figure 2.4 Power Receptor & Button Pin Assignment
4. Plug the power lines into the system power receptor.
5. Supply power to the system
6. Calibrate the touchscreen.
2.1.1 Installing the Drivers
After installing your system software, you will be able to set up the Ethernet, VGA,
and touchscreen functions. All drivers are stored in a CDROM disc entitled “TPC-
1251T, TPC-1551T, TPC-1251H & TPC-1551H” which can be found in your acces-
sory box.
The various drivers in the CD-ROM disc have their own text files which help users
install the drivers and understand their functions. These files are a very useful sup-
plement to the information in this manual.
Note! If you want to install the touchscreen driver & use the touchscreen utility,
please refer the user manual which is "PenMount 6000 Installation-
Guide" in the CD-ROM.
Note! The drivers and utilities used for the TPC-1251T, TPC-1551T, TPC-
1251H & TPC-1551H panel PCs are subject to change without notice. If
in doubt, check Advantech's website or contact our application engi-
neers for the latest information regarding drivers and utilities.
