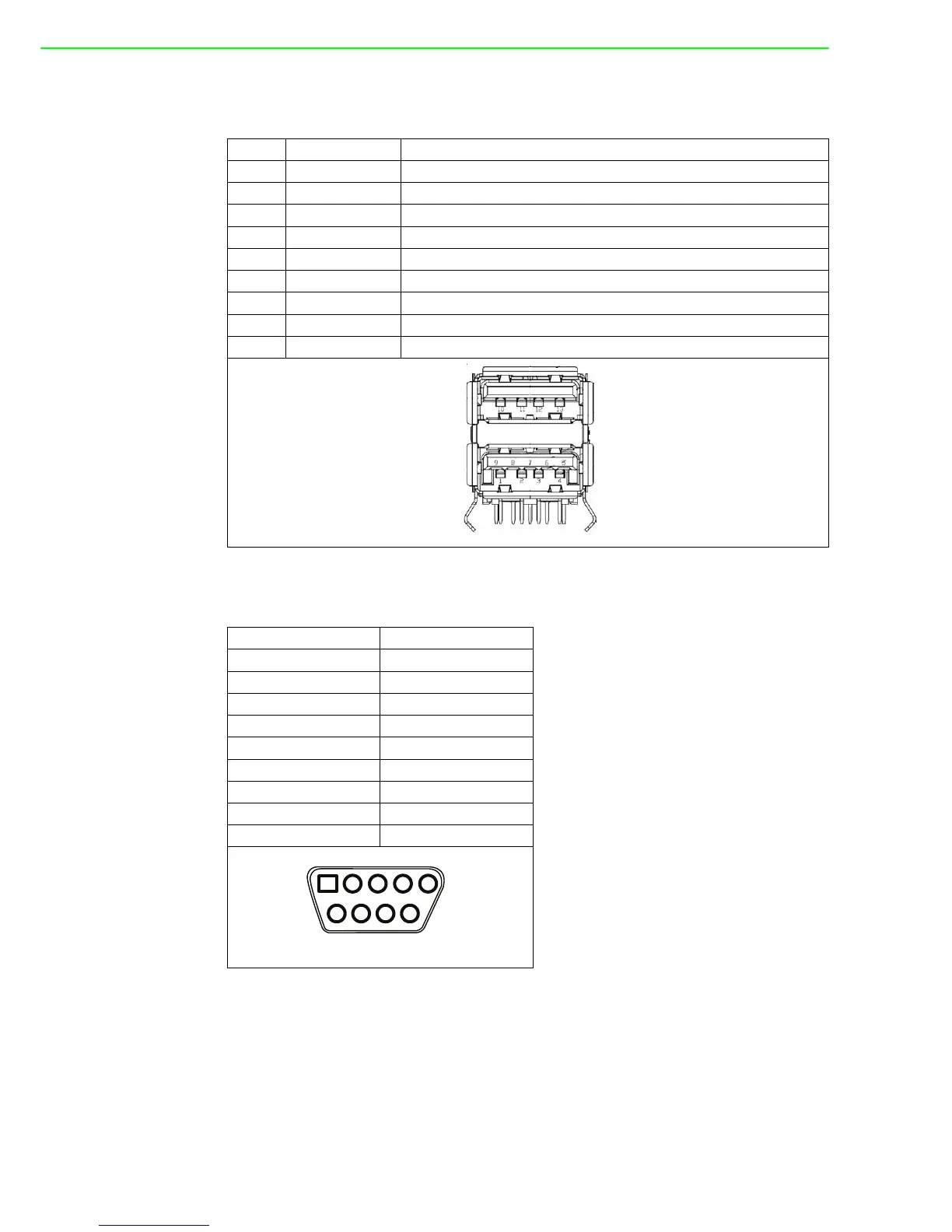

A.4.7 USB connector (CN10)
1654010199 USB Conn. 2.0+3.0 13P 90D(F) DIP UEA1112C-UHS6-4
A.4.8 COM1 RS232 connector (CN15)
1654000056 D-SUB Conn. 9P 90D(M) DIP 070241MR009S200ZU
Pin Signal Description
1, 10 USB VBUS USB Power output ,USB2.0 5V/0.5A and USB3.0 5V/0.9A
2, 11 USB_P- USB2.0 date -
3, 12 USB_P+ USB2.0 date +
4,13 GND Ground for Power return
5 SSRX- USB3.0 RX -
6 SSRX+ USB3.0 RX +
7 GND_DRAIN Ground for signal return
8 SSTX- USB3.0 TX -
9 SSTX+ USB3.0 TX +
Pin RS232
1 DCD
2RX
3TX
4DTR
5GND
6DSR
7RTS
8CTS
9RI
12345
6789
