UNO-2484G User Manual 6
2.1 Introduction
The following figures show the connectors on UNO-2484G. Information regarding
each peripheral is provided in the following sections.

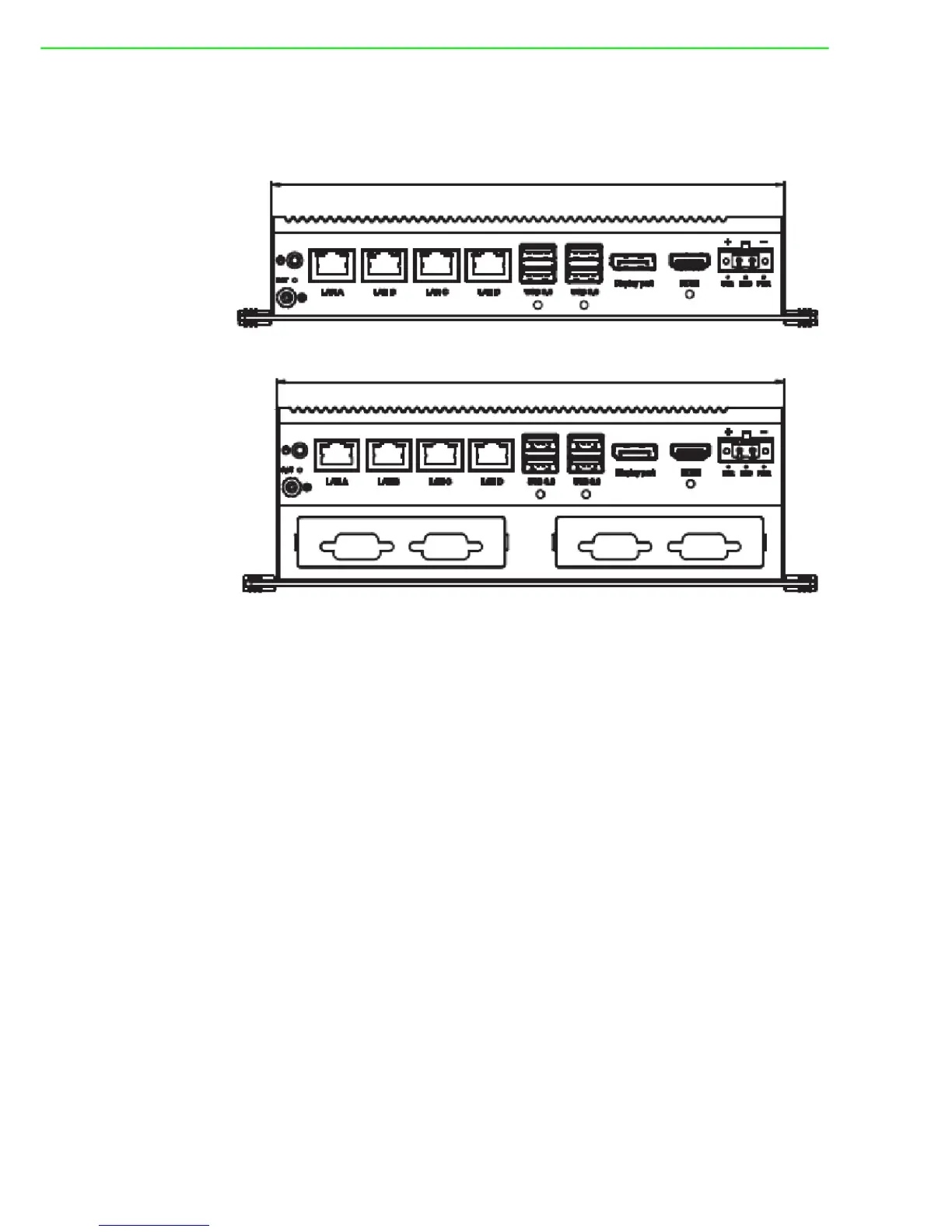

Figure 2.1 Front panel of the UNO-2484G single-stack model
Figure 2.2 Front panel of the UNO2484G dual-stack model
2.2 UNO-2484G Interface
he UNO-2484G is equipped with four standard COM serial communication ports –
COM1, COM2, COM3, and COM4. The port settings can be adjusted from the BIOS
menu. Drivers are installed automatically during OS installation.
2.2.1 COM Port Interface (COM1, COM2, COM3, COM4)
The UNO-2484G features four RS-232/422/485, DB9, 50 ~ 115.2 kbps.
2.3 LAN: Ethernet Connector
UNO-2484G is equipped with a four Gigabit LAN controller. The controller chip used
is an Intel i210 Ethernet controller that is fully compliant with IEEE 802.3u 10/100/
1000 Base-T. The Ethernet port is a standard RJ-45 jack, and LED indicators are on
the front to show its Link (Green LED) and Active (Green LED) status.
2.4 Power Connector
The UNO-2484G is equipped with a phoenix power connector that is compatible with
10 ~ 36 V
DC
external power and features reversed wiring protection. This protects
the system from damage caused by reversed wiring of ground and power lines. (For
more information, refer to Appendix A.4.)
