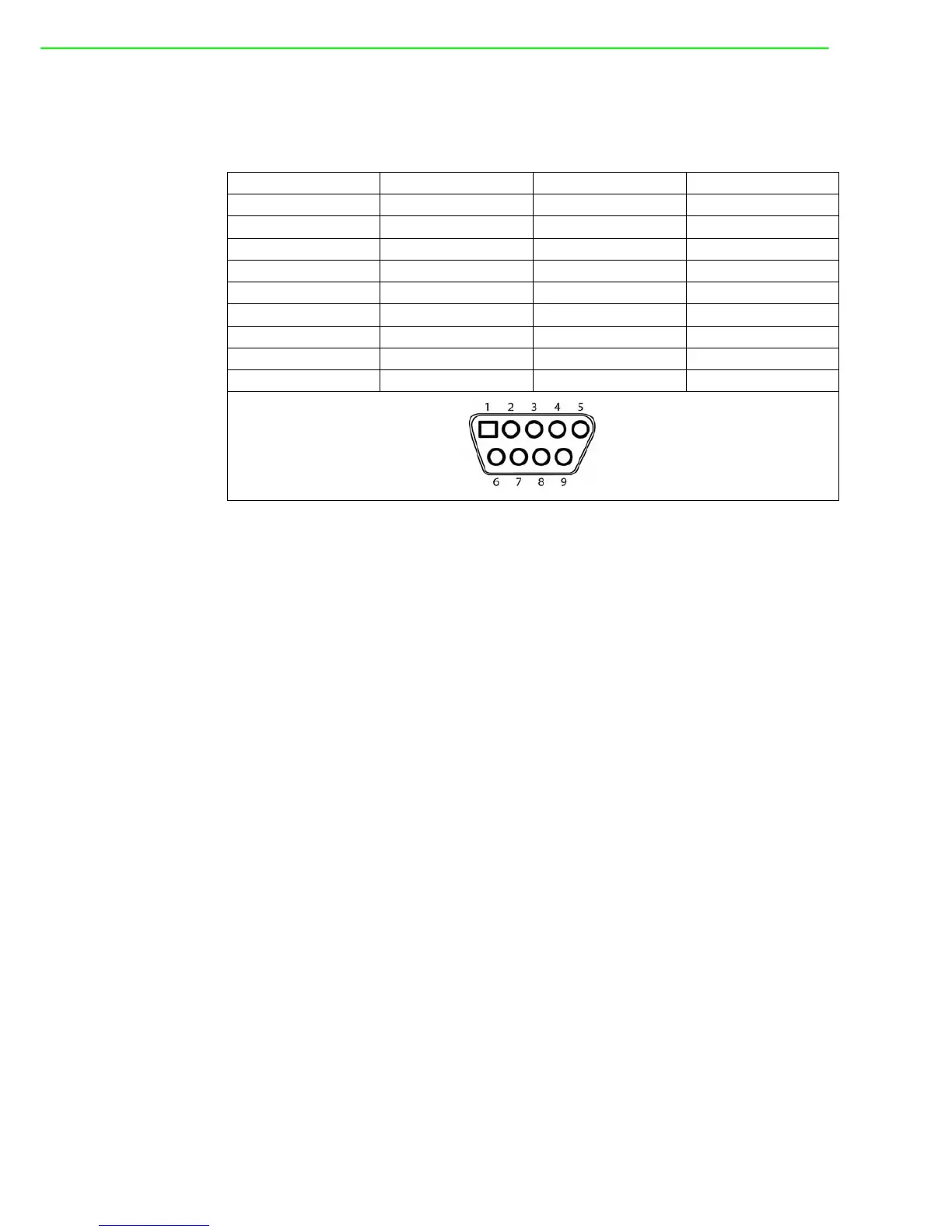

UNO-2484G User Manual 30

A.6 COM1/COM2/COM3/COM4 RS232/422/485

Connector

Pin RS232 RS422 RS485

1 DCD TX- D-

2RXTX+D+

3TXRX+

4DTRRX-

5GNDGNDGND

6DSR

7RTS

8CTS

9RI
