13 UNO-2484G User Manual
Chapter 3 Initial Setup
3.4 Hard Disk Installation
3.4.1 HDD/SSD Installation for Single-Stack UNO-2484G

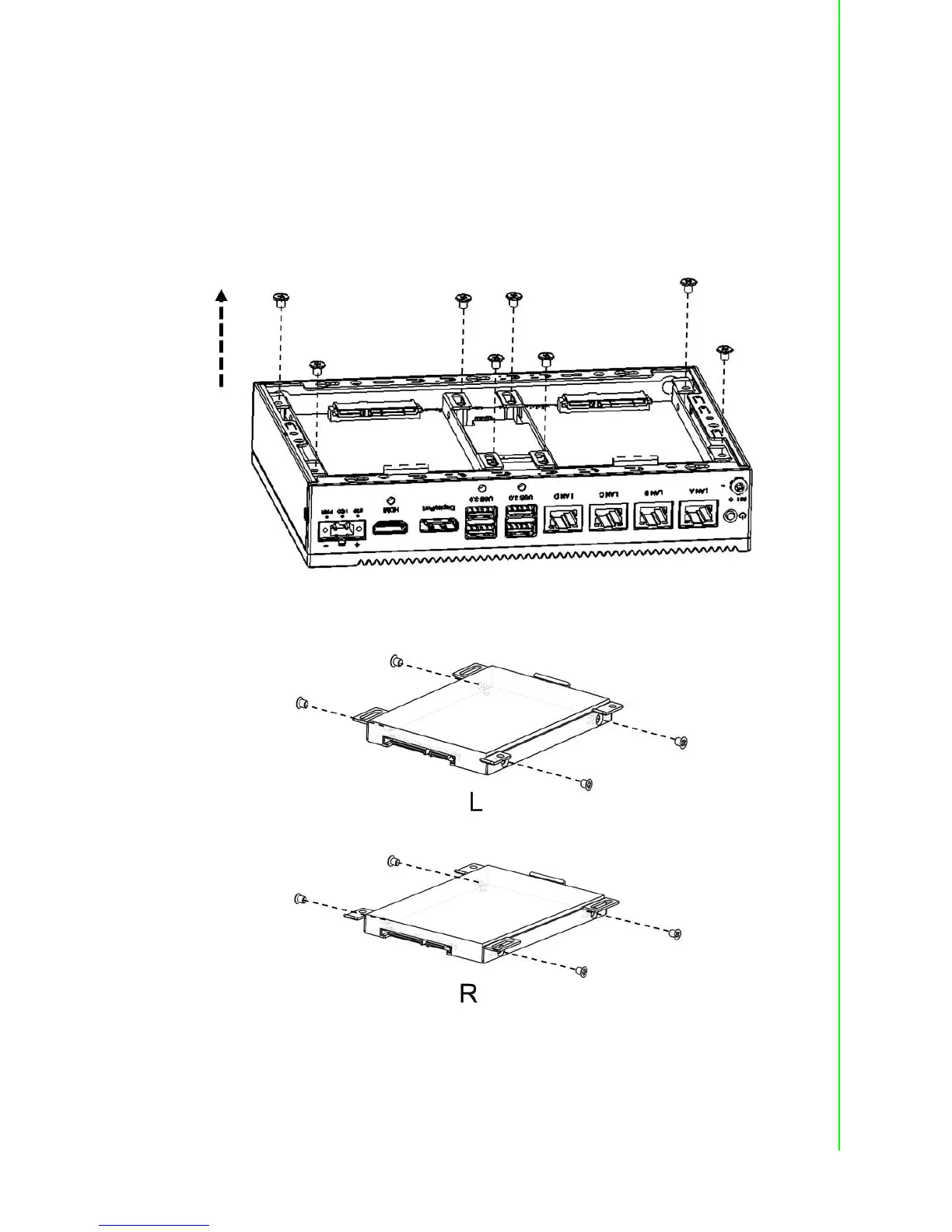

1. Remove the rear cover
2. Remove the HDD bracket by unscrewing the four affixing screws on the HDD
bracket
3. Attach the HDD/SSD to the HDD bracket using screws
