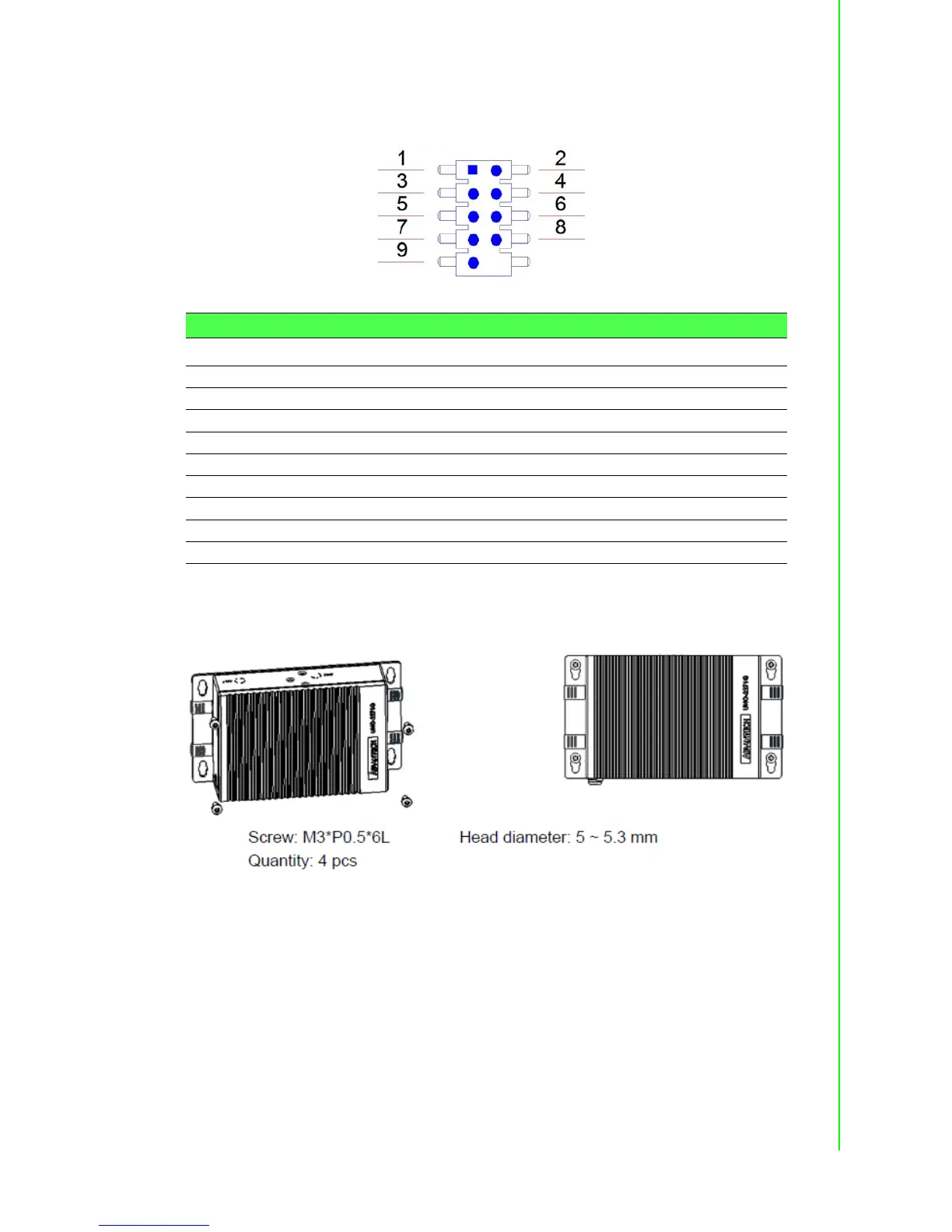

33 UNO-2484G User Manual
Appendix A System Settings
/
Pin Assignments
A.9 CN15/CN53 Internal USB 2.0 Pin Header
A.10 Screw Type and Quantity for Mounting Module
Table A.7: CN15/CN53 Internal USB 2.0 Pin Header
Pin Signal
1+5V
2+5V
3USB1-
4USB2-
5USB1+
6USB2+
7GND
8GND
9NC
