UNO-2484G User Manual 10
3.1 Chassis Grounding
The UNO-2484G provides adequate EMI protection and a stable grounding base.
Moreover, an easy-to-connect chassis grounding point is also provided.

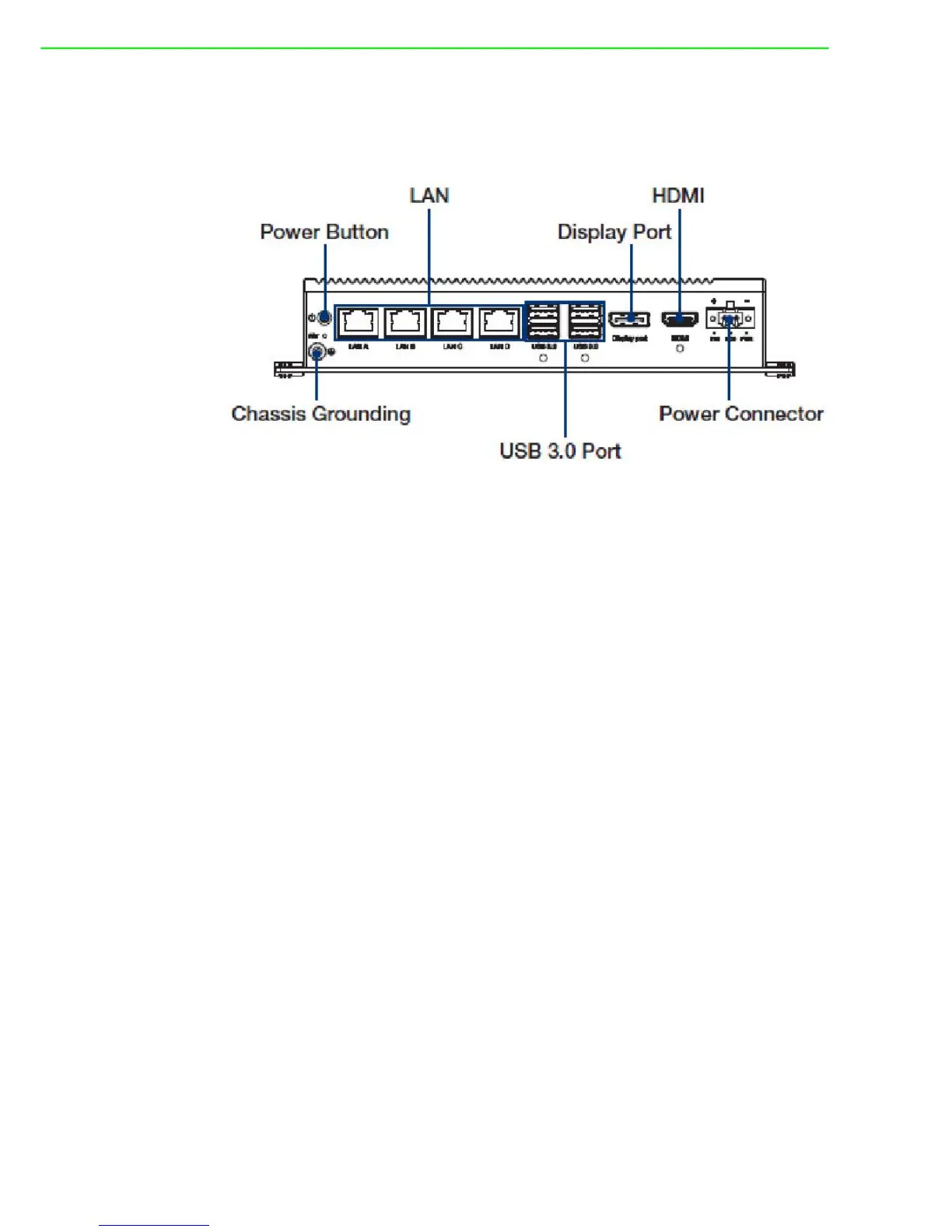

Figure 3.1 Chassis grounding connection
3.2 Connect the Power Supply
The UNO-2484G is intended to be supplied by a listed power adapter or DC power
source rated 10 ~ 36V
DC, 8A, and TMA 60 °C. Should you require further assistance,
please contact Advantech for additional information.
