29 UNO-2484G User Manual
Appendix A System Settings
/
Pin Assignments

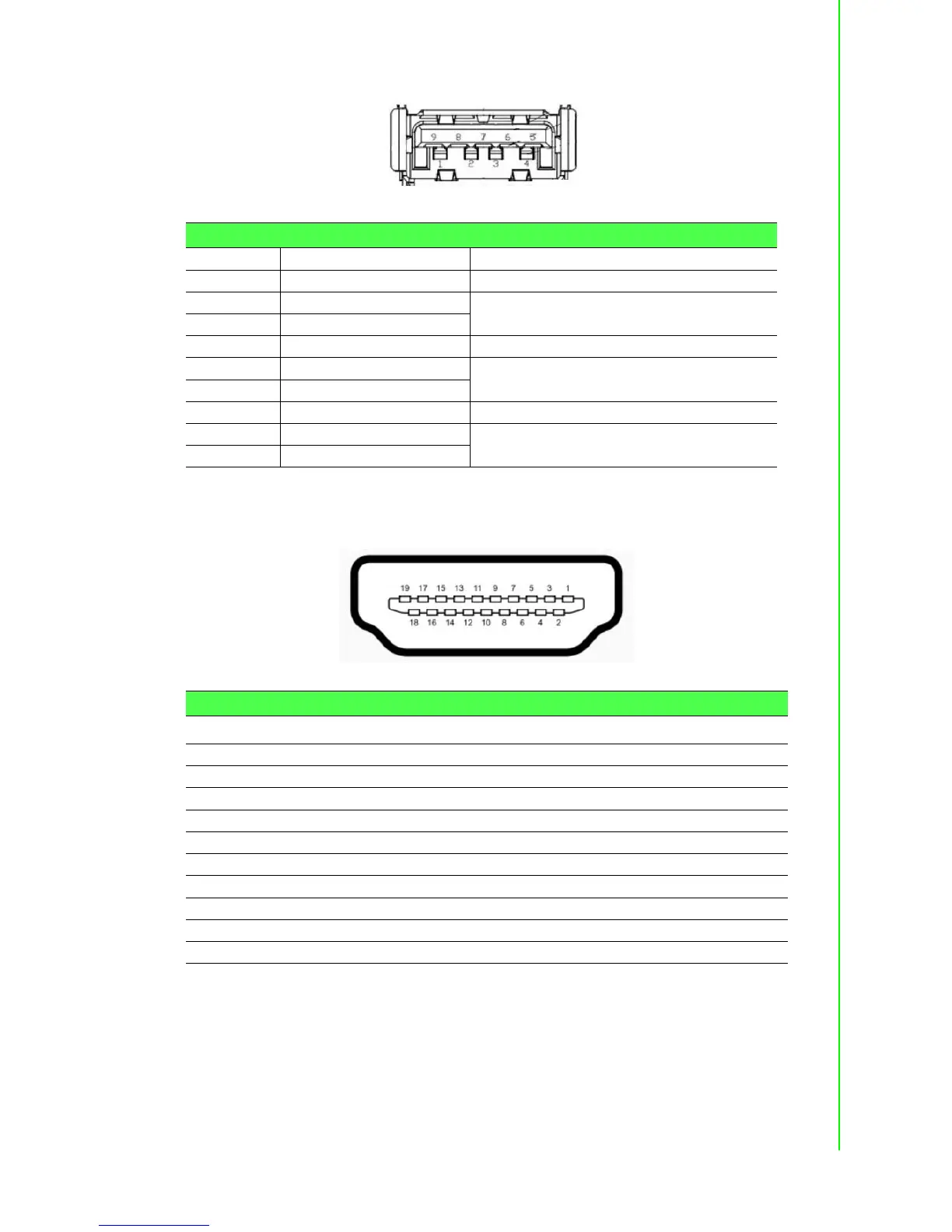

A.5 HDMI Display Connector
Table A.5: USB 3.0 Connector Pin Assignments
Pin Signal Name Description
1 VBUS Power
2D-
USB2.0 differential pair
3D+
4 GND Ground for power return
5 StdA_SSRX-
SuperSpeed receiver differential pair
6 StdA_SSRX+
7 GND_DRIAN Ground for signal return
8 StdA_SSTX-
SuperSpeed transmitter differential pair
9 StdA_SSTX+
Table A.6: HDMI Display Connector
Pin Signal Pin Signal
1 TMDS Data2+ 2 TMDS Data2 Shield
3 TMDS Data2- 4 TMDS Data1+
5 TMDS Data1 Shield 6 TMDS Data1-
7 TMDS Data0+ 8 TMDS Data0 Shield
9 TMDS Data0- 10 TMDS Clock+
11 TMDS Clock Shield 12 TMDS Clock-
13 CEC 14 Reserved
15 SCL 16 SDA
17 DDC/CEC/HEC Ground 18 +5 V Power (max. 50 mA)
19 Hot Plug Detect
