UNO-2484G User Manual 20

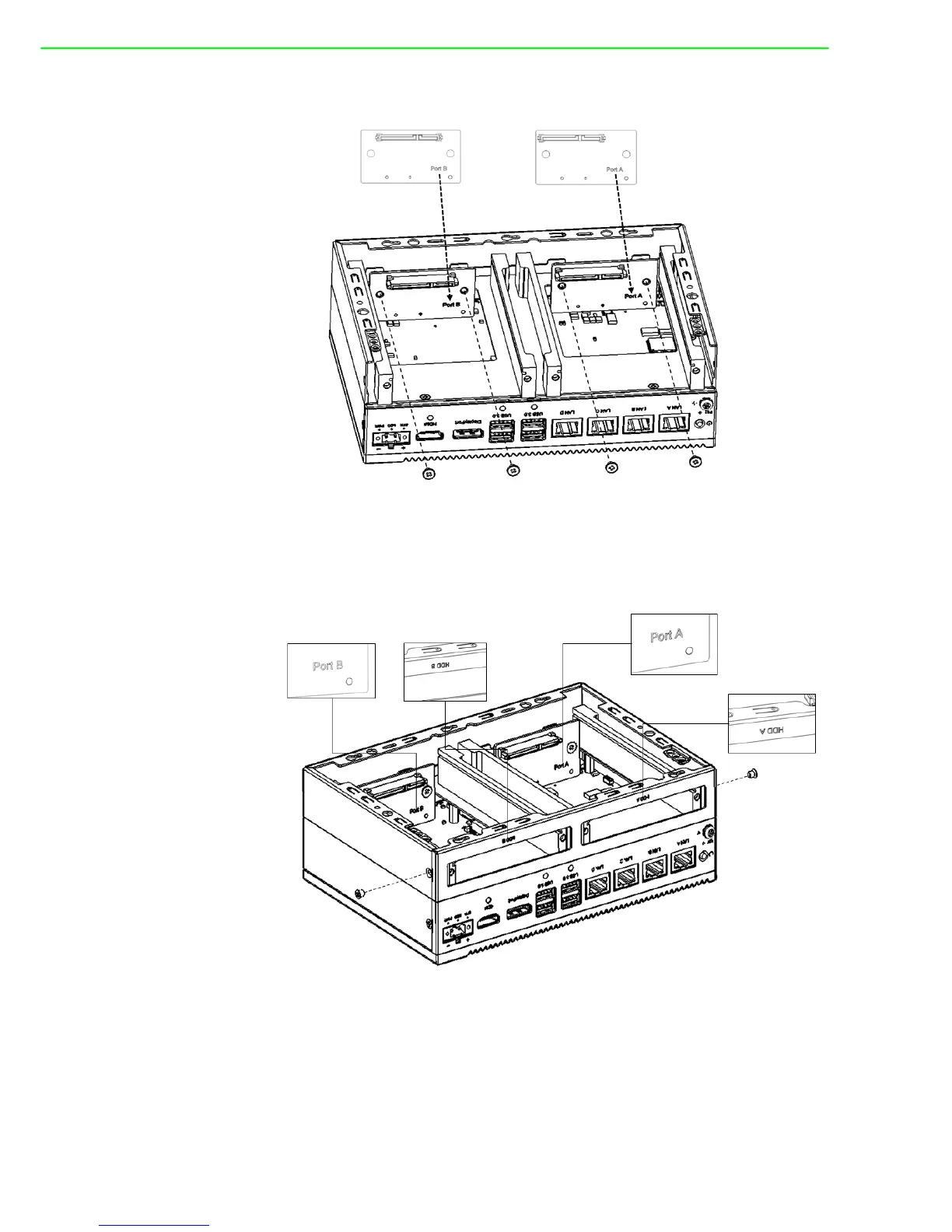

2. Lock PCBA Port A (3) and Port B (3) with screws (2).
3. Secure the front cover (5-2) in place using the screws provided (1). Ensure that
the HDD A port of the front cover and Port A on the PCBA are located on the
same side.
