32
INSTALLATION OF THE APPLIANCE (CONTINUED)

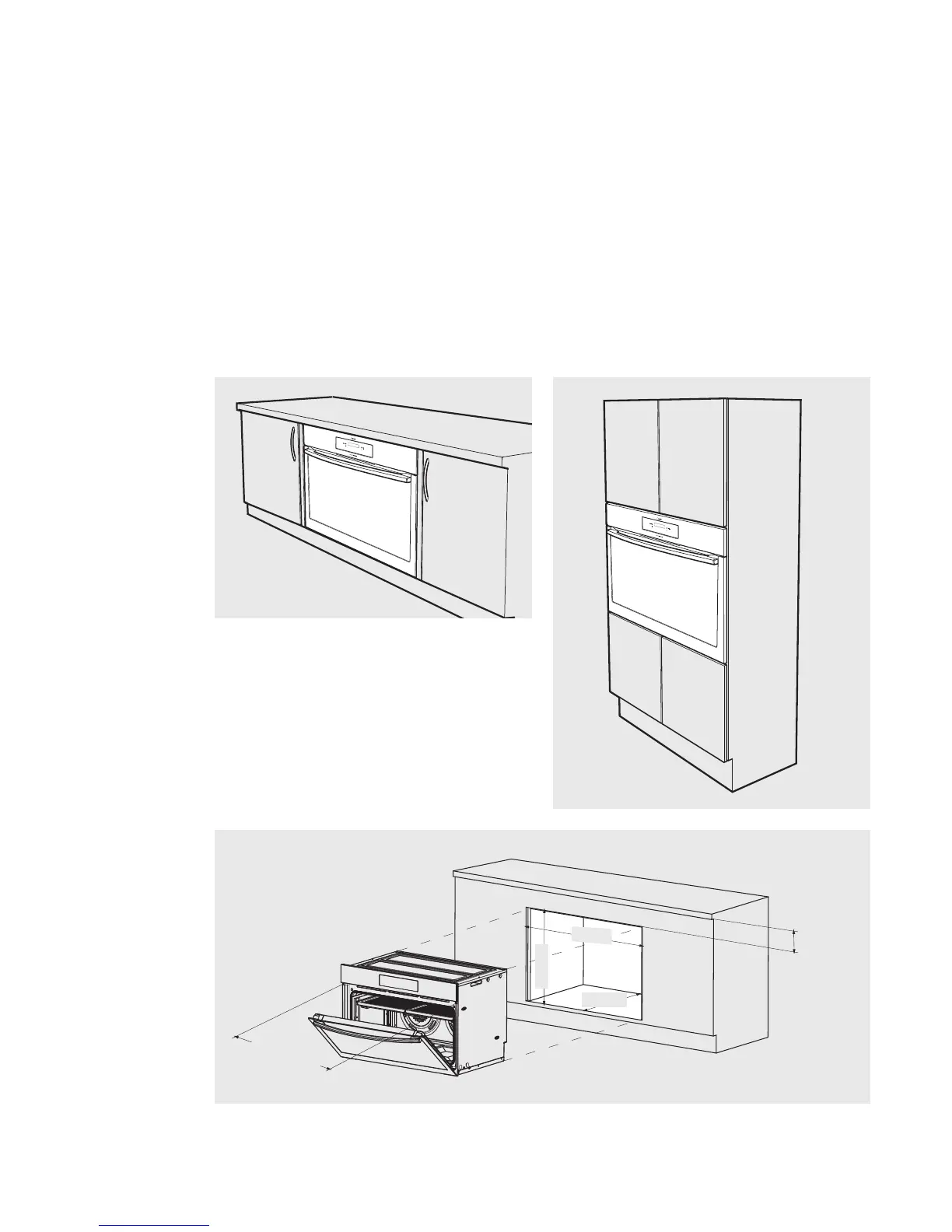

Underbench installation
Your underbench oven looks best when the control
panel is directly under the benchtop. An upper infill
panel may be added if the cooktop placed above the
benchtop is too deep. *Refer to cooktop installation
instructions for required clearance between cooktop
and oven.
Vertical cabinet installation
The oven can be built into a vertical cabinet in the
same manner as an underbench. The required cavity
dimensions are the same and the product is secured to
the cabinet in the same way.
NOTE: If a power point is fitted it must be accessible with the appliance installed.
900mm
600mm
580mm
*See note
876mm
Mounting holes
