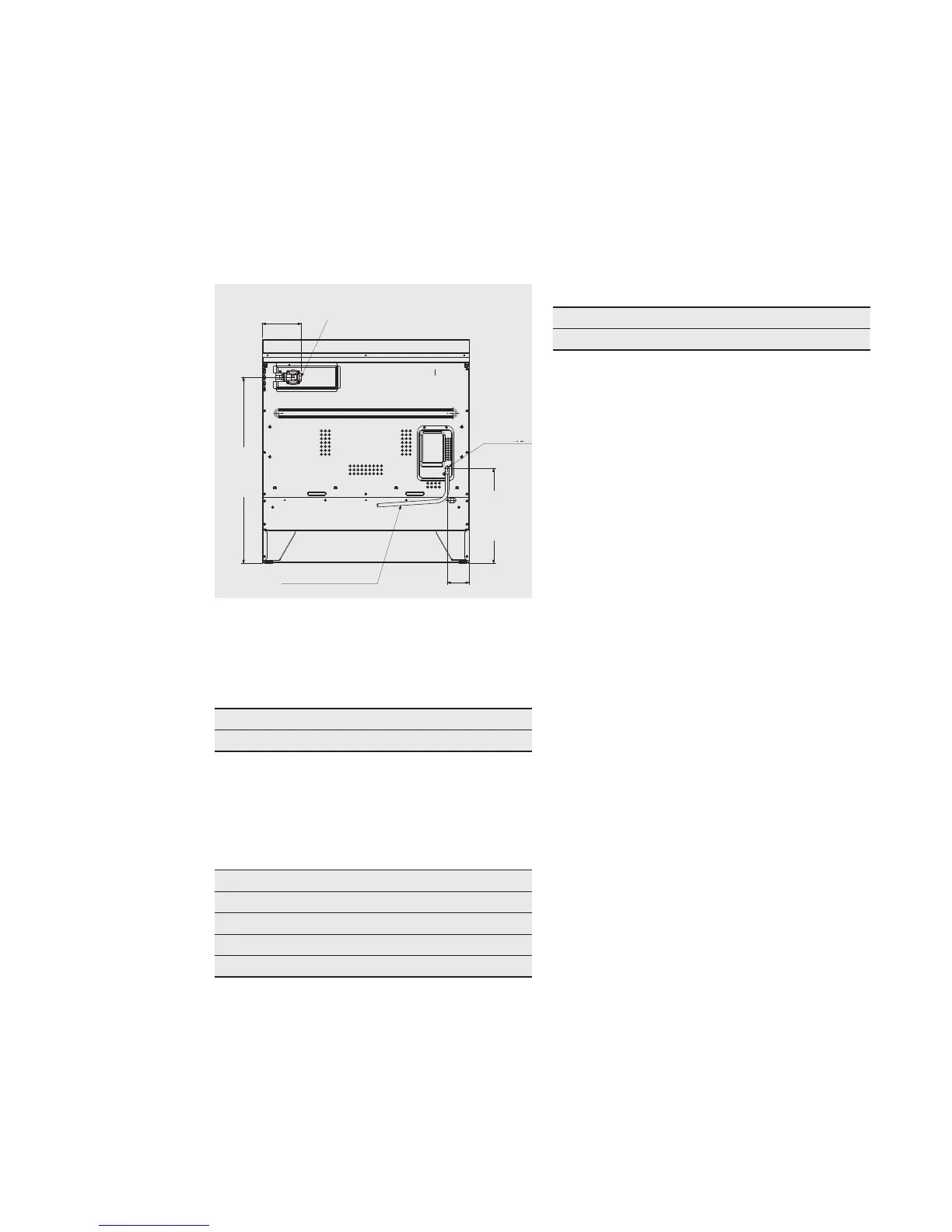

ELECTRICAL & GAS CONNECTION LOCATIONS
Model 49669GO-MN
168mm
95mm
Electrical connection cable
806mm
411mm
Gas connection point to regulator
Electrical
cable entry
point
installing the gas cooker
Gas pressures
The following table shows the supply and operating
pressures for various gases.
Gas type LPG NG
Supply pressure 2.8 (kPa) 2.0 (kPa)
* If the regulator is placed upstream of the cooker inlet,
as is normal for cookers operating on LPG, then the
supply pressure and operating pressure are the same.
The following table shows the injector sizes for
each burner.
Injector orifice LPG NG
Low heat burner 0.55mm 0.70mm
Medium heat burner 0.70mm 0.96mm
High heat burner 1.90mm 1.19mm
Intense heat wok burner 1.00mm 1.46mm
Checking piping size
To work out a suitable pipe size for connection use:
The information in this table.
Gas type LPG NG
49669GO-MN 1013.3 g/h 47.5 MJ/h
Information about the length of run, number of elbows,
tees and bends, the available service pressure and the
supply requirements.
Gas Connection
Read these points before connecting to the gas supply:
• TheapplianceispresetLPGuse.Ifnaturalgasis
to be used see Conversion to natural gas section.
• Gasinstallationmustbemadeinaccordancewith
SANS10087-1, the local gas fitting regulations,
municipal codes and other statutory regulations.
• Thegasconnectionpointisa½”BSPexternal
thread located at the rear of the appliance as shown.
• Aregulatormustbefittedtotheappliance.Ensure
that when fitted the pressure test point of regulator
is accessible.
• Theregulatoristobefittedtotheappliance
connection point, then fit hard piping from the
regulator to the consumer hard piping. Ensure the
installation allows the withdrawal of the appliance.
