WIRING REQUIREMENTS
The cooker MUST be installed in compliance with:
• localregulations,municipalbuildingcodesand
other statutory regulations.
Supply cord size
required
49669GO-MN: 1.5mm
2
BE7600061M: 1.5mm
2
Data plate gives information about rating
is located behind the bottom of the
oven door
Circuit diagram is located on the back panel of the
appliance
• AfunctionalswitchMUSTbeprovidednearthe
appliance in an accessible position.
• WiringMUSTbeprotectedagainst
mechanical failure.
• Thecookerrequiresameansofallpole
disconnection incorporated into the fixed wiring.
This MUST have a disconnection gap of 3mm.
• ThecookerMUSTbeproperlyearthed.
NOTE: When connections are made to a multi-phase
230 / 240V supply, the bridge piece MUST be removed
from between the active connections.
Before you cook in your new oven it is
important that the protective oils used
in the manufacture of the product be
removed.
• Makesurethattheroomiswellventilated(toallow
smoke to escape).
• Runthegrillonhighfor30minuteswithoutgrilldish.
• Thenruntheovenon220°Cfor1hour.
Connecting to services and
commissioning
This appliance must be installed by an authorised
person, according to all codes and regulations of:
• Electricalsupplyauthorities.
• Buildingregulations.
• Localgovernmentandcouncilauthorities.

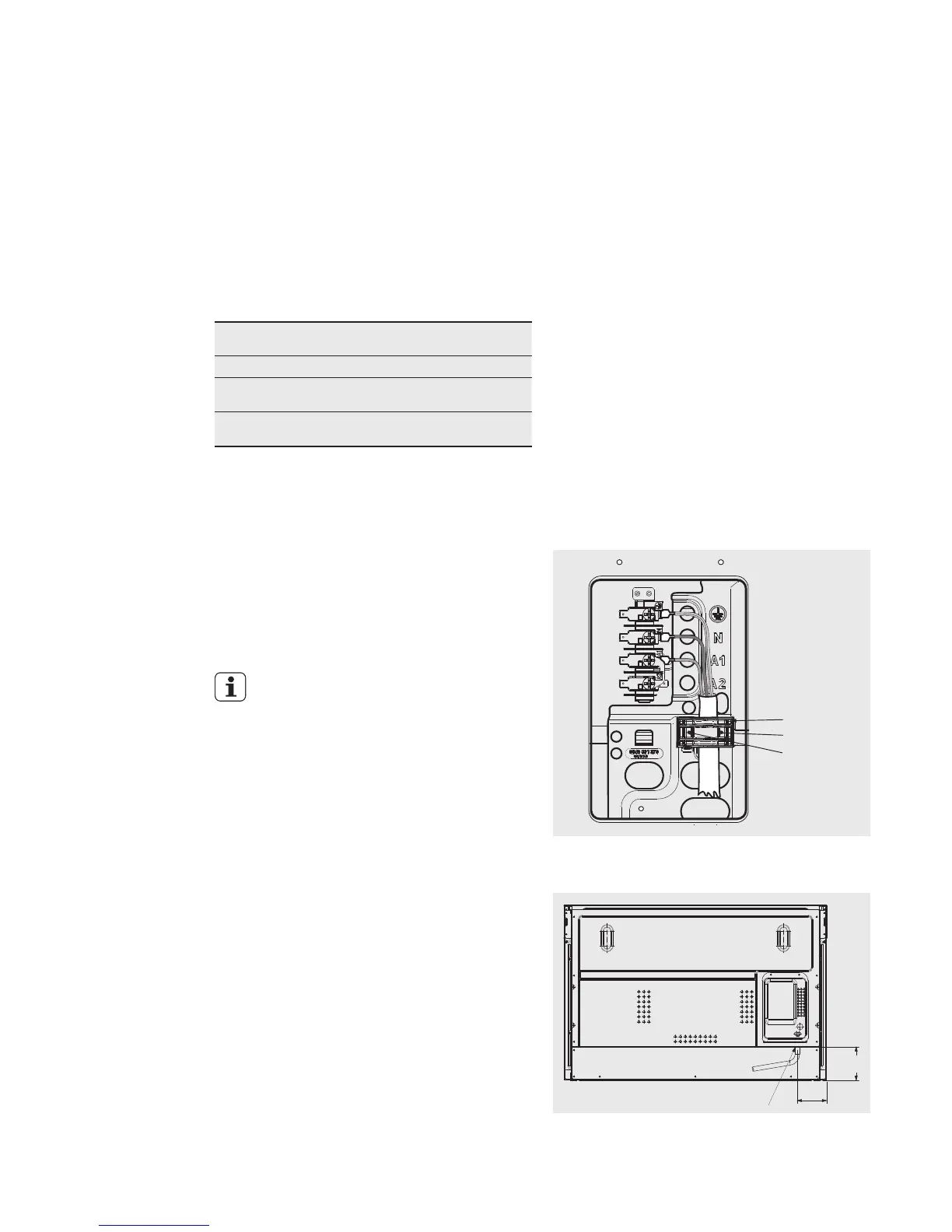

Hard wiring detail
1. Remove terminal cover plate from rear panel of
appliance.
2. Fit wires through hole in cover plate and make
connections to terminals.
3. Engage wires into plastic clip. Secure plastic clip with
two long silver screws (supplied in separate bag).
4. Replace cover plate onto rear panel.
Securing points
Plastic clips
Plastic clip
Electrical connection location –
model BE7600061M
Entry point of electrical cable
99
113
