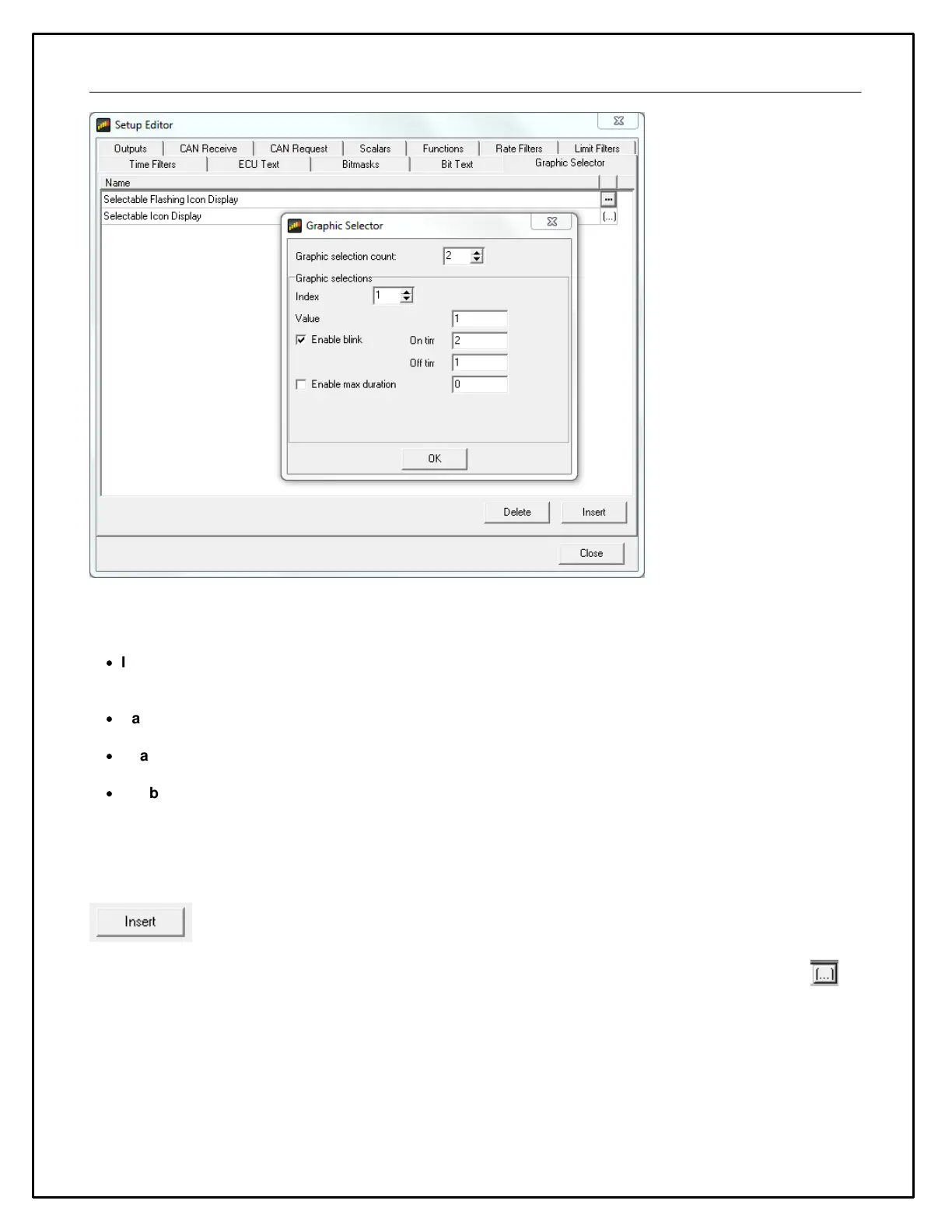

The graphic selection count is the number of graphics used in the sensor and is at least two. The first graphic is

shown by default. Subsequent graphics are shown according to the settings in the graphic Selections box.

Index - The number of the selection graphic for which the following settings are made. For example, if the

selection count is set to 3, 1 will specify the first selectable graphic and 2 will specify the second selectable

graphic.

Value - When the input (specified in the output) is equal to this value, this graphic is shown instead of the

default graphic.

Enable Blink - If checked, this graphic will blink according to the On Time and Off Time in seconds. The

graphic swaps between the indexed graphic and the default graphic.

Enable Max Duration - If checked, the graphic is only be shown for the specified duration no matter how long

the input is equal to the value.

Alarm Operation

To create a new Alarm output, push the Insert button in the Outputs tab of the Setup Editor.

Assign the output a new name and choose Alarm from the dropdown list of available Operations. Push the

button under the Primary Input column for the new Alarm Output. This will open the Alarm Output Setup window.

The new name will automatically be added to the Alarm Output Name box.
