Micro-Ohmmeter Model 5600
AC Power Selection
The Model 5600 may be recharged by 110V or 220VAC (47 to 450Hz).
The instrument includes a 110V supply cord, which provides the
charging voltage for the rechargeable battery. Verify that “110V” appears
on the indicator located below the line cord indicator socket on the front
panel; this will permit recharging with the 110V supply cord.
To change the charging voltage, disassemble the unit as previously
noted. Move the switch on the power supply board to the “220V” position
(see Fig. 3). A 220V supply cord (not supplied) is required for 220V
operation. Be sure to change the indicator on the front panel to the
“220V” position by removing the two screws that secure it and turning the
indicator over.

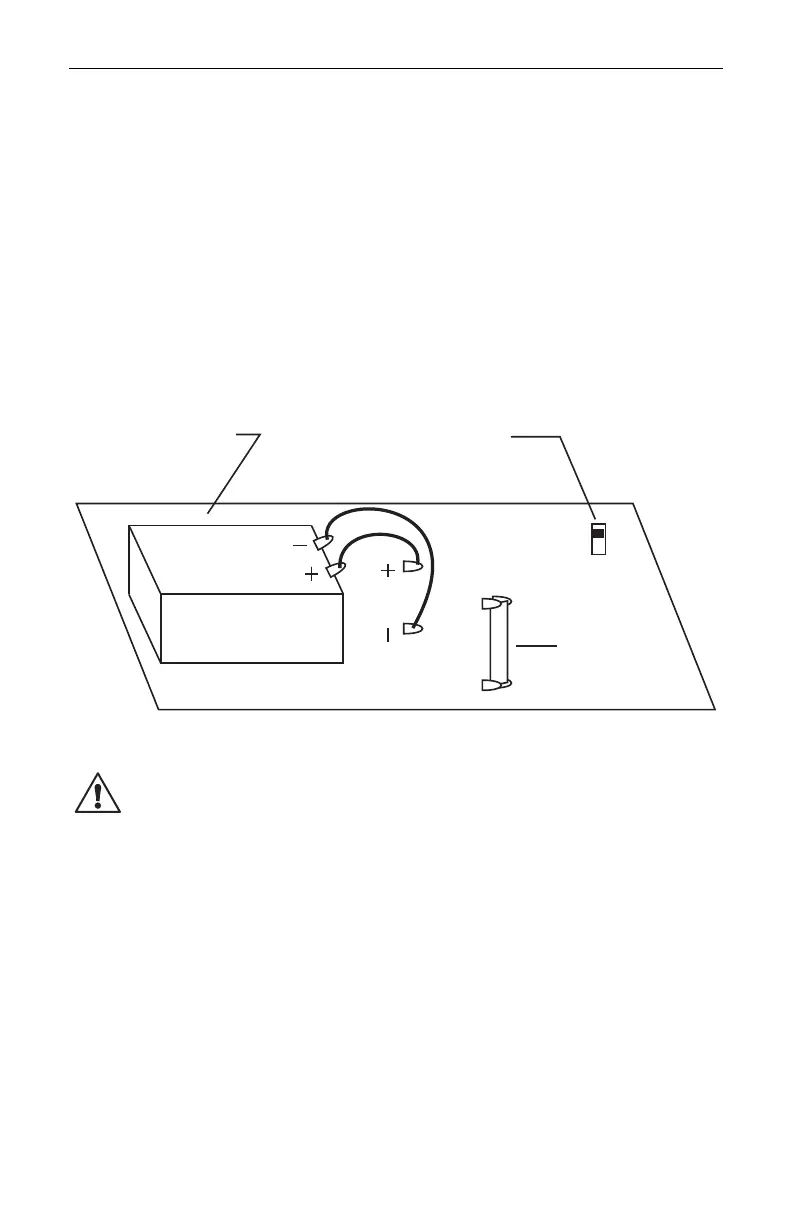

6 V
110V
220V
Source Voltage Selection
Switch (110V AC/220V AC)
Power Supply Board
6 V DC
10 A
Supply Fuse
Figure 3
CAUTION: Do not change the charging voltage while the Model
5600 is connected to the AC supply.
- 9 -
