AEMC 5600 User Manual

Micro-Ohmmeter Model 5600

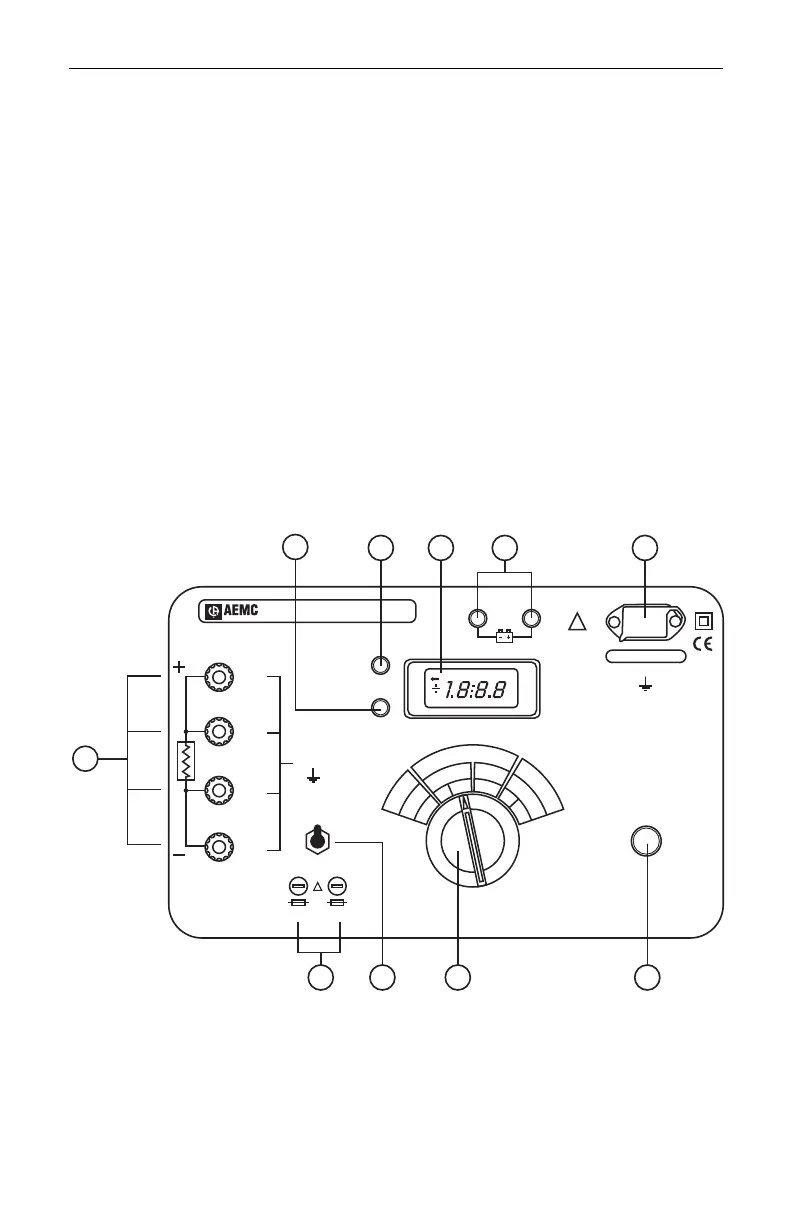

Control & Connector Identification
1. Lead connection terminal lugs; accepts 4mm diameter banana jack
or 6mm (min) spade lugs.
2. Thermal protection indicator
3. Measurement current fault indicator
4. Liquid crystal display
5. Battery indication lights (low battery & charging)
6. Line cord input socket for battery recharging
7. On/Off power button
8. Six-position rotary switch selects measurement range & output
current
9. Polarity inverter switch
10. Input fuse holders
C2
P2
C1
P1
50/60/400 Hz_110V
Rx
ON/OFF
!
!
F1
30V CAT II
FF
8A 380V
6.3 x 32
200 kA
F2
+ I
- I
1
0
A
1
A
0
.
1
A
0
.
0
1
A
µ
Ω
m
Ω
Ω
2
0
0
0
2
0
2
0
0
2
0
0
0
2
0
2
0
0
FAULT
THERMAL
PROTECTION
10A
LOW CHARGING
20 VA
300V, CAT II
INSTRUMENTS
MICRO-OHMMETER MODEL 5600
®
1
2
3 4
5
6
8
7
9
10
Figure 1
- 7 -

AEMC 5600 Specifications

General

Brand	AEMC
Model	5600
Category	Measuring Instruments
Language	English
