Micro-Ohmmeter Model 5600
Disassembly
Before replacing the internal batteries or changing the power supply
voltage rating, the chassis must first be removed. Use the hex key to
unscrew the six fastening screws from the chassis, which are located on
the bottom of the case.
Pull out the chassis. Do not forget to unplug the two leads that connect
the power supply board in the bottom of the case to the boards, which
are mounted in the chassis. Be sure to note the polarity when
reconnecting the leads.
Detachable Cover

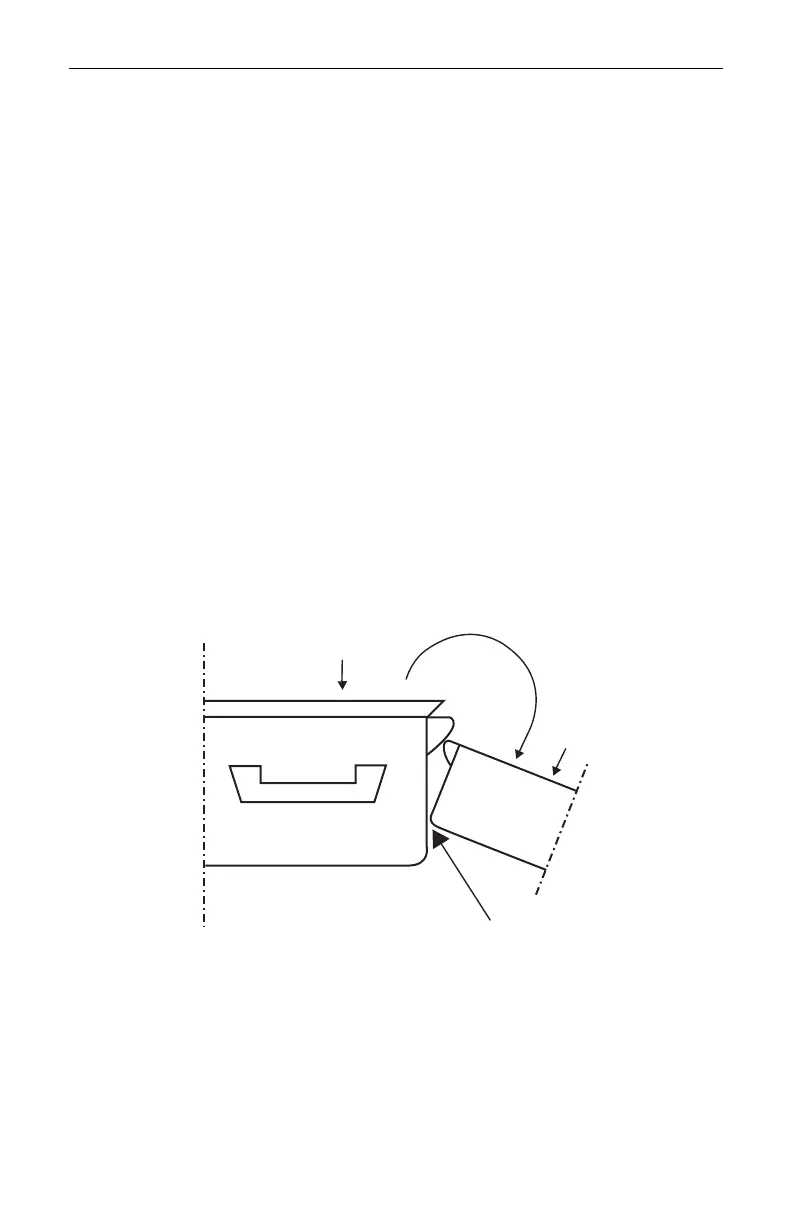

The cover hinges are fitted with spring-loaded clips, which allow the
cover to be removed. To detach the cover from the Model 5600, open
the lid to a horizontal position and apply downward pressure to the hinge
side of the cover while gripping it firmly (see Fig. 2).
To re-attach the cover, position the cover in a horizontal position and fit
the hinges into the respective housing. Apply strong rear-to-front
pressure to the cover until it snaps into place.
F
F
Unhinging
Supporting Point
Figure 2
- 8 -
