AerAtron AE2+ Series - Attaching the Fan Blades

C
Lock Screw
9

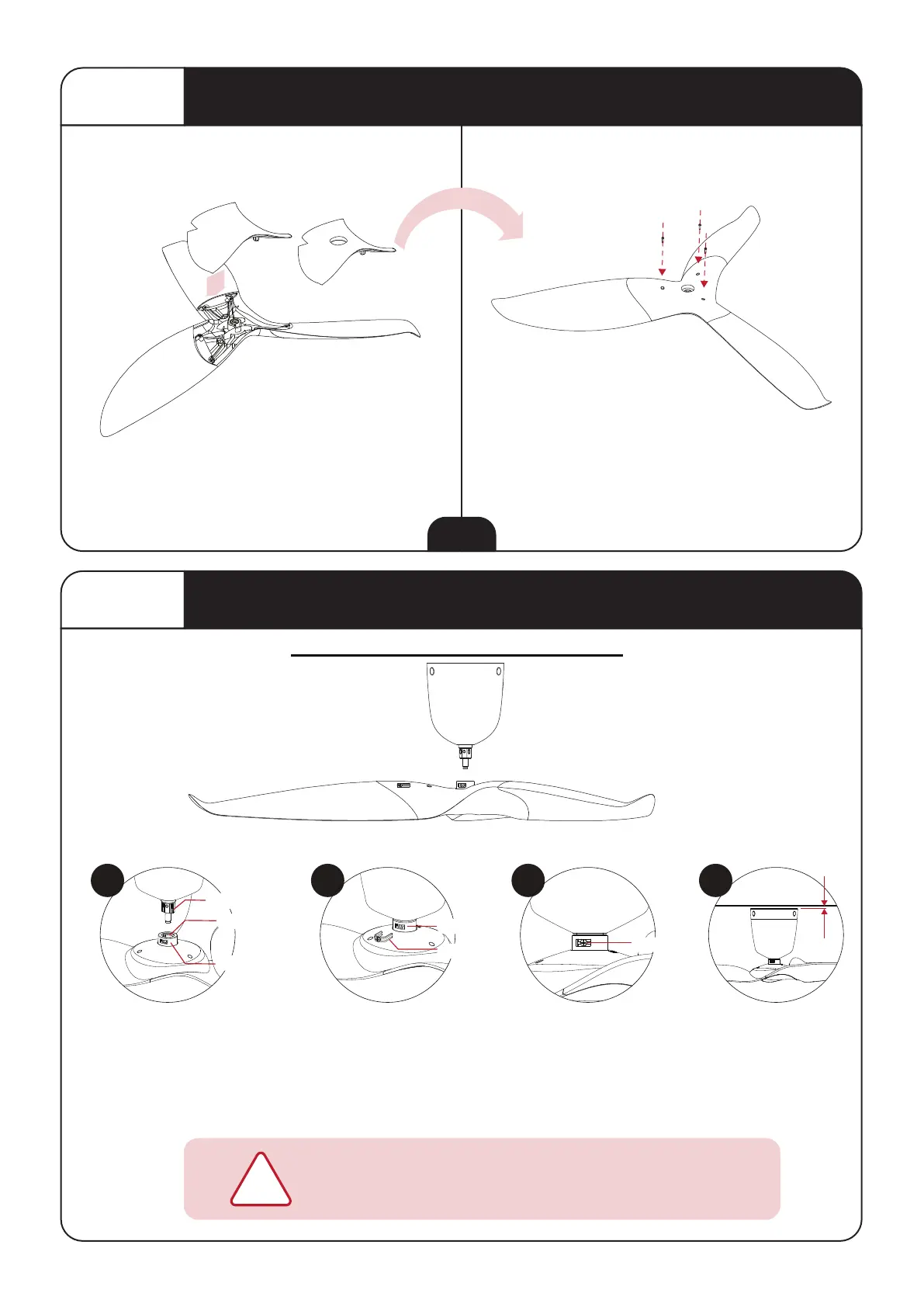

STEP 9
Attaching the Fan Blades
44
STEP 8
Assembling the Fan Blades cont.
C D
Insert the Hub Lower (or oponal Light Hub
Lower) into the recess. With care, turn the fan
over.
Fasten the the Hub Lower from the top side
using the 3 Hub Screws.
No liability is accepted if the Silicone ring is
removed or the Pivot Lock is installed
incorrectly/lock screw is not ghtened.
Ensure fan sha is vercal.
The fan will be vercal if
the clearance ‘X’ between
the ceiling and motor
housing is equal all way
round.
!
Align Drive Sha with Pivot
Connector and slide fan
blades onto Drive Sha.
Hold/push up Fan Blades
and insert Pivot Lock,
defelecng the silicon
sideways. Push Pivot Lock
into the sha.
Tighten Lock Screw
securely using screw driver.
Do not use power tools.
D
x
A
Drive Sha
Pivot Connector
Silicone Ring
B
Pivot Lock
Silicone Ring
Light Hub Lower
(OPTIONAL)
