AerAtron AE2+ Series - Raked Ceiling Kit

11

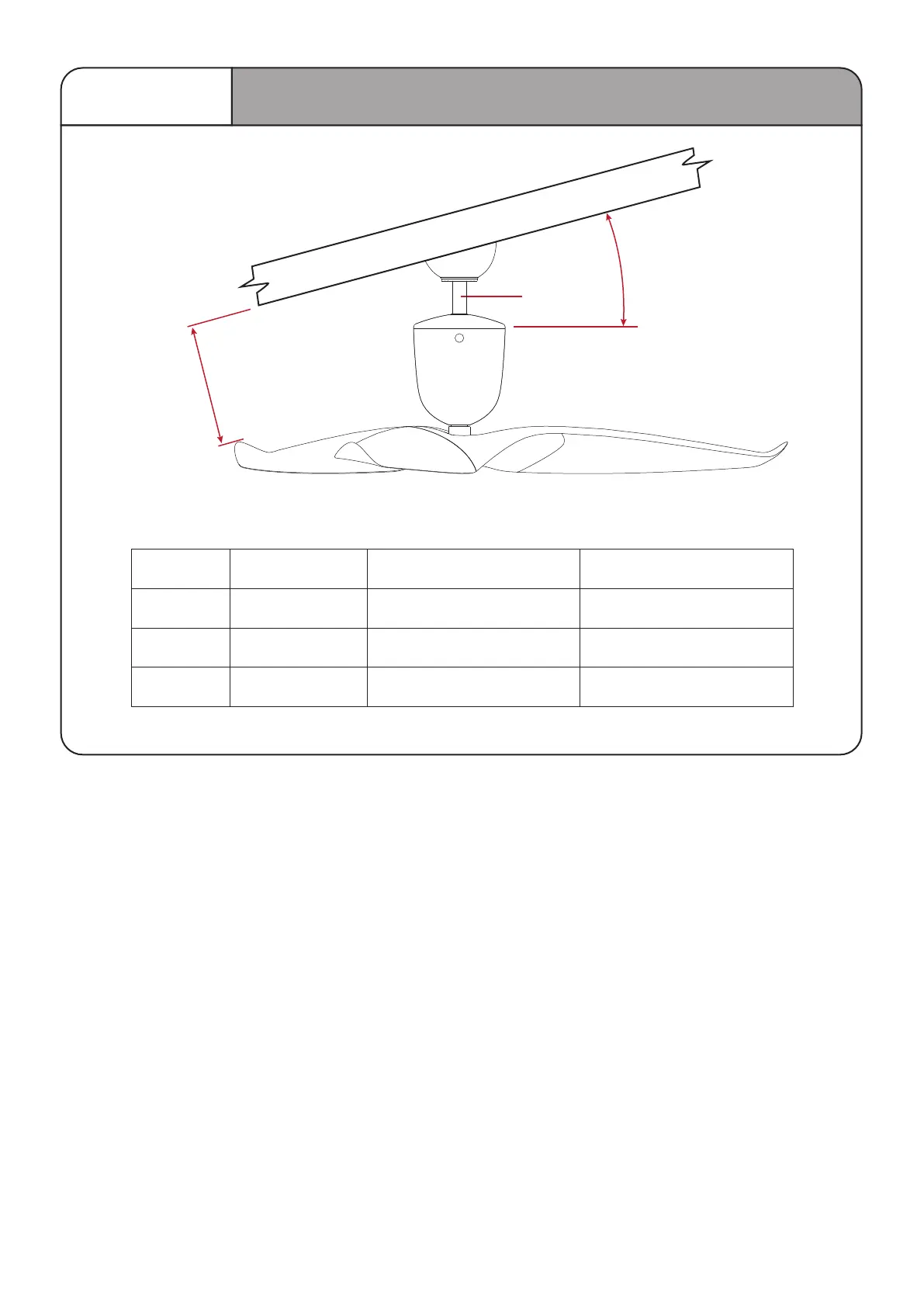

OPTION C
Raked Ceiling Kit
CEILING JOIST
“B”
“C”
“a”
“B” Extension Rod Length
115mm Rod (4
17/32”
)
600mm Rod (23
5/8”
)
900mm Rod (35
7/16”
)
Accessories Required
Included
Not Included
Not Included
“C” Clearance
200mm min.
“a” Angle
17° - 33°
