6
STEP 5

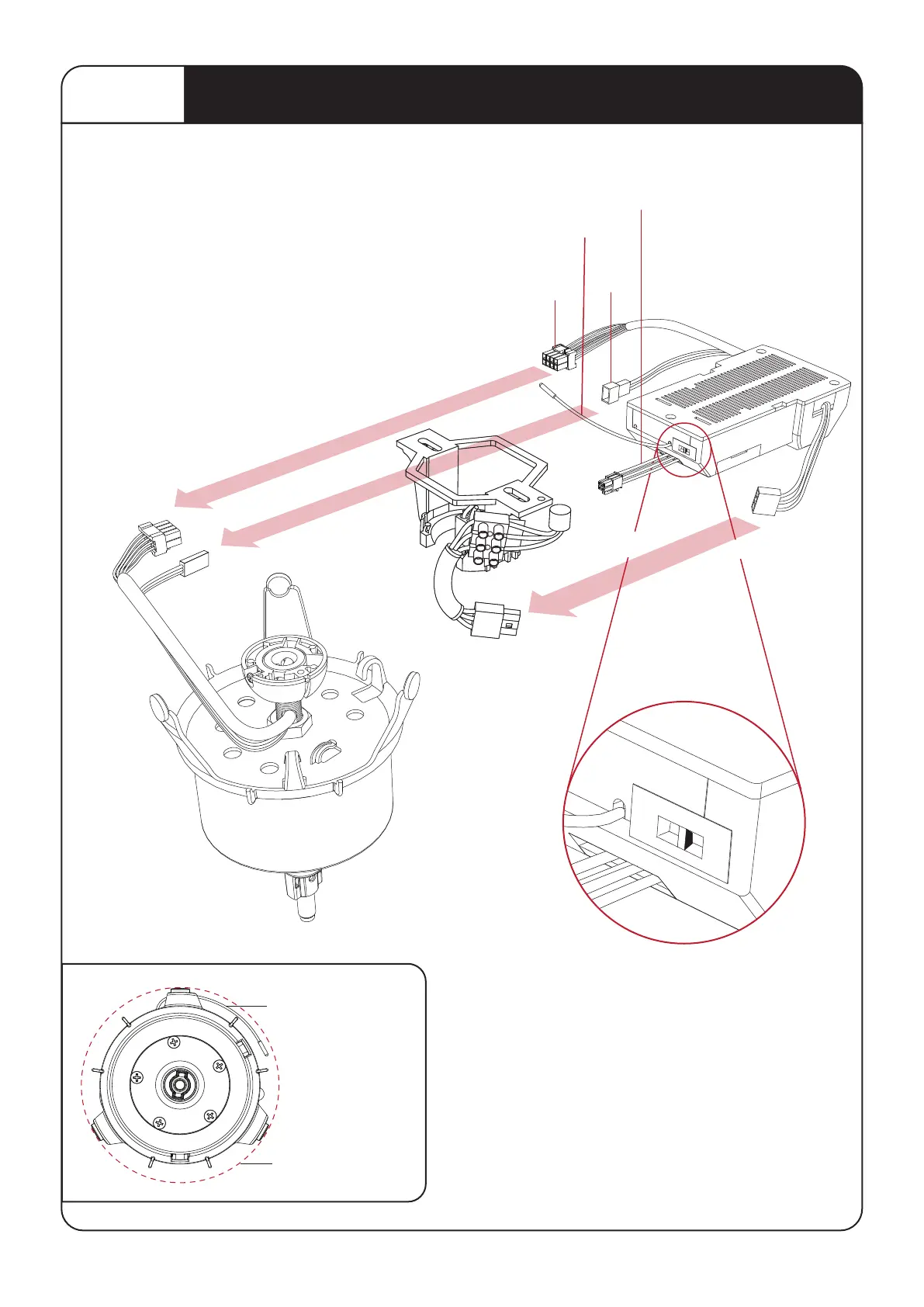

Connecting the Receiver
2PIN
4PIN Receiver to Comms
(optional USE ONLY IF INSTRUCTED)
1. Connect the 2 PIN & 3 PIN connector
between DC Motor and Receiver.
2. Connect the 3PIN connector between
Mains Power and Reciever.
3PIN
Receiver to Motor
Aerial
Fix Remote Control
Aerial to ceiling
within circle of Fan
Motor Housing
Housing perimeter
3PIN
2PIN
Receiver to Light
LEARN SWITCH
ON RECIEVER
Aerial
OFF
LEARN
ON
3PIN Mains Power to Receiver
To Next Page
