Aerco Benchmark 2.0 User Manual

APPENDIX F
F-4
2" SCH.40 PIPE
REV
AERCO
INTERNATIONAL, INC. NORTHVALE, NJ 07647

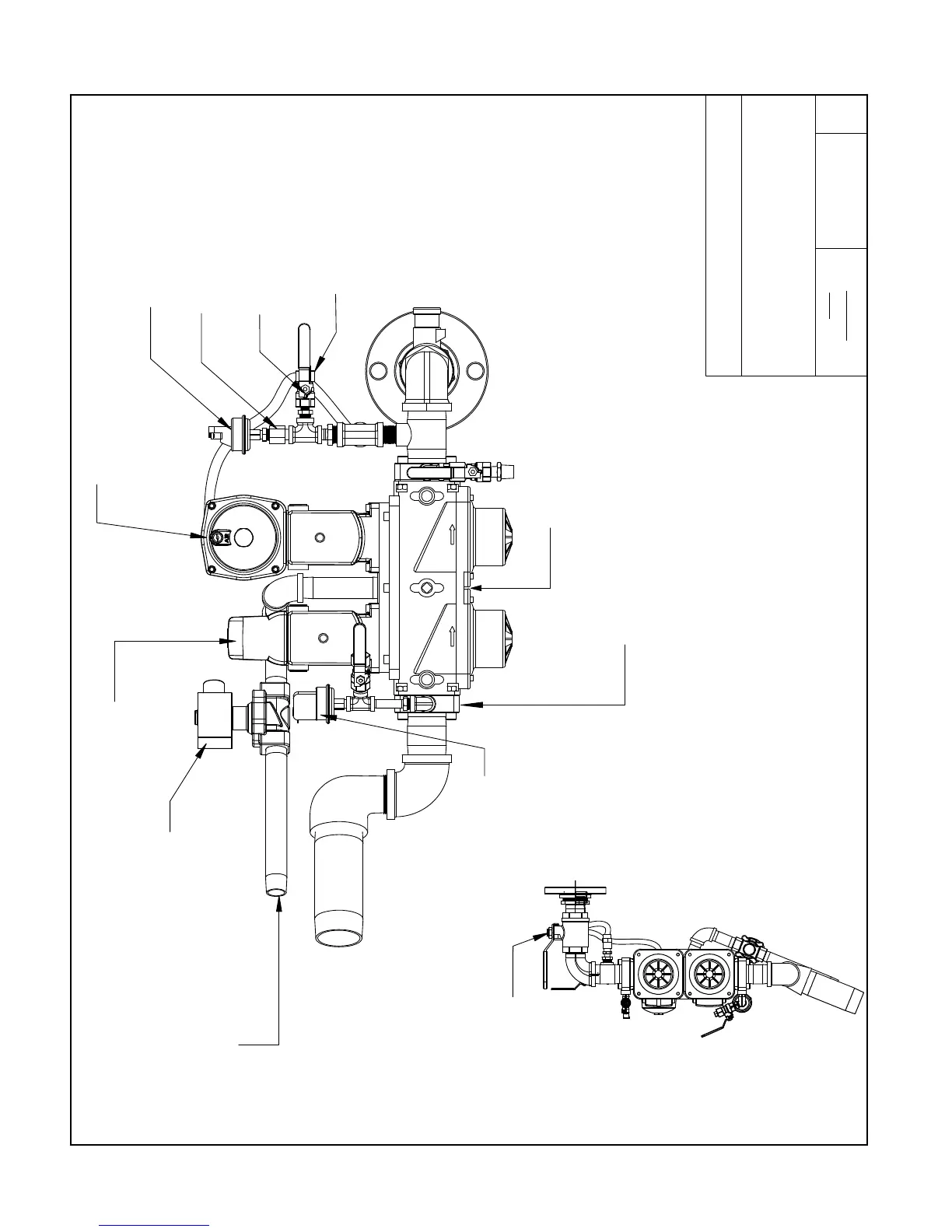

BENCHMARK 2.0 LOW NOx
IRI GAS TRAIN
AP - A - 843
C
DRWN BY: SJD
DATE: 10/12/09
*NOT TO SCALE*
SAFETY SHUT OFF VALVE
ACTUATOR P/N: 64048
SAFETY SHUT OFF VALVE
ACTUATOR WITHOUT PROOF OF
CLOSURE SWITCH P/N: 69038
3/4" SCH.40 PIPE
ENTIRE BMK2.0 LN IRI GAS TRAIN P/N: 22064-2
1/8" NPT PLUG
(INSTALL MANOMETER HERE)
TEST COCK
1.5" IRI SSOV
(DOUBLE-BODY) P/N 124137
LOW GAS PRESSURES
SWITCH P/N: 61002-1
GAS PRESSURE SNUBBER
P/N: 99017
HIGH GAS PRESSURE
SWITCH P/N: 61002-12
VENT TO ATMOSPHERE PER
ANSI Z223.1 (NFPA54)
NORMALLY OPEN VENT
VALVE P/N: GP-122774
1.5" FULL PORT BALL
VALVE P/N: 92006-7
1.5" DOUBLE-BODY SSOV CONNECTING
FLANGE (QTY. 2) P/N 124178

Aerco Benchmark 2.0 Specifications

General

Model	Benchmark 2.0
Category	Boiler
Fuel Type	Natural Gas or Propane
Type	Condensing
Input Capacity	2, 000, 000 BTU/h
NOx Emissions	<20 ppm
Operating Pressure	160 psi
Vent Diameter	6 inches
