Aerco Benchmark 2.0 User Manual

APPENDIX F
REV
AERCO
INTERNATIONAL, INC. NORTHVALE, NJ 07647

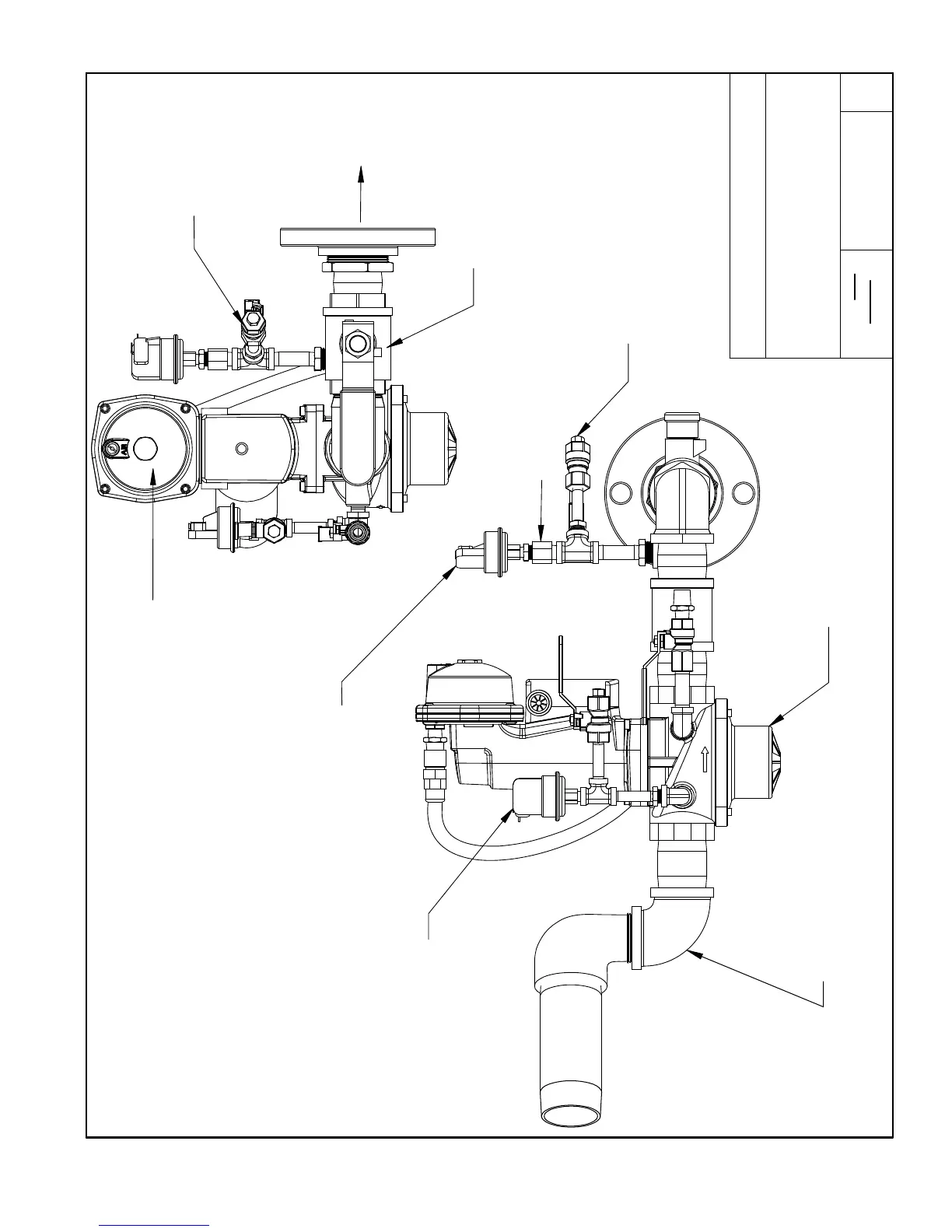

BENCHMARK 2.0 LOW NOx
FM GAS TRAIN
AP - A - 842
B
DRWN BY: SJD DATE: 2/12/09
*NOT TO SCALE*
HIGH GAS PRESSURE
SWITCH P/N: 61002-12
LOW GAS PRESSURE
SWITCH P/N: 61002-1
1/8" NPT PLUG
(INSTALL MANOMETER HERE)
ENTIRE BMK2.0 LN FM
GAS TRAIN P/N: 22064-1
2" - SCH. 40 PIPE
1.50" SAFETY SHUT-OFF
VALVE P/N: 124150
GAS PRESSURE SNUBBER P/N: 99017
TO A/F VALVE ASSY.
FULL PORT BALL VALVE
1.50" NPT P/N: 92006-7
TEST COCK
SAFETY SHUT-OFF VALVE ACTUATOR P/N: 64048
F-3

Aerco Benchmark 2.0 Specifications

General

Model	Benchmark 2.0
Category	Boiler
Fuel Type	Natural Gas or Propane
Type	Condensing
Input Capacity	2, 000, 000 BTU/h
NOx Emissions	<20 ppm
Operating Pressure	160 psi
Vent Diameter	6 inches
