MC2: 10/03/12 Page 58 of 90
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, NY 10913 • Ph: 800-526-0288
GF-115-H
OMM-0083_0B
Modulex MLX Series Gas Fired Boiler System
Operation and Maintenance Manual
Chap 9:
Maintenance

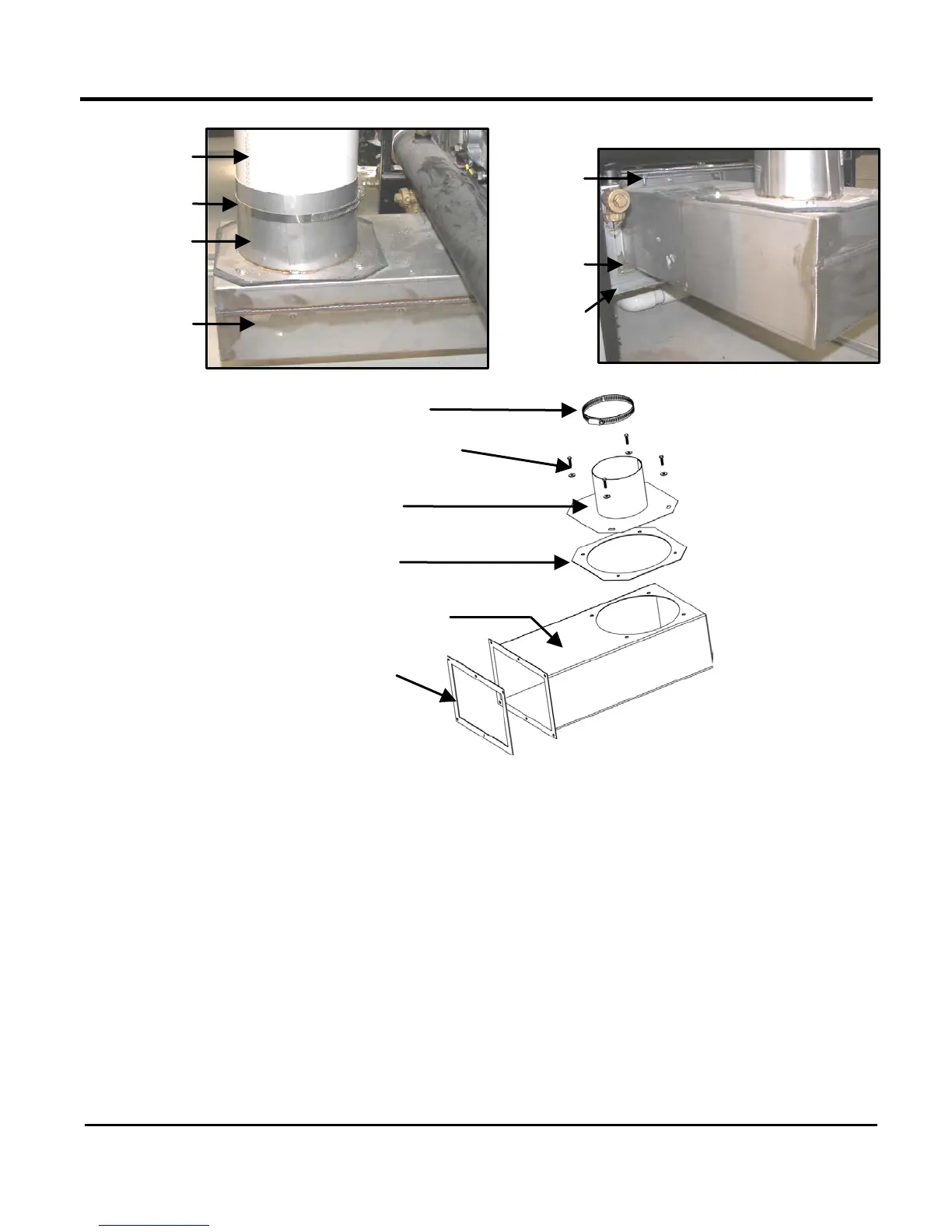

Figure 9-14: Flue Collector Parts and Assembly
Flue Starter
Section
Hose Clamp
Exhaust
Connect
Flue
Collector
M4 Hex
Nuts (3)
M4 Bolts
(3)
Conden-
sate Tray
M5-20 Bolt (4) &
5x15mm OD washers
Exhaust
Connector
Hose Clamp
Exhaust
Connect
Flue Collector
Flue Collector
Gasket
