Modulex MLX Series Gas Fired Boiler System
Operation and Maintenance Manual
Chap 9:
Maintenance
Figure 9-18: Electrical Connections on Rear of Burner Sections
9.4.2 Replacement of Burner Sections
After disassembly, discard any sections to be replaced and follow steps in the instructions below.

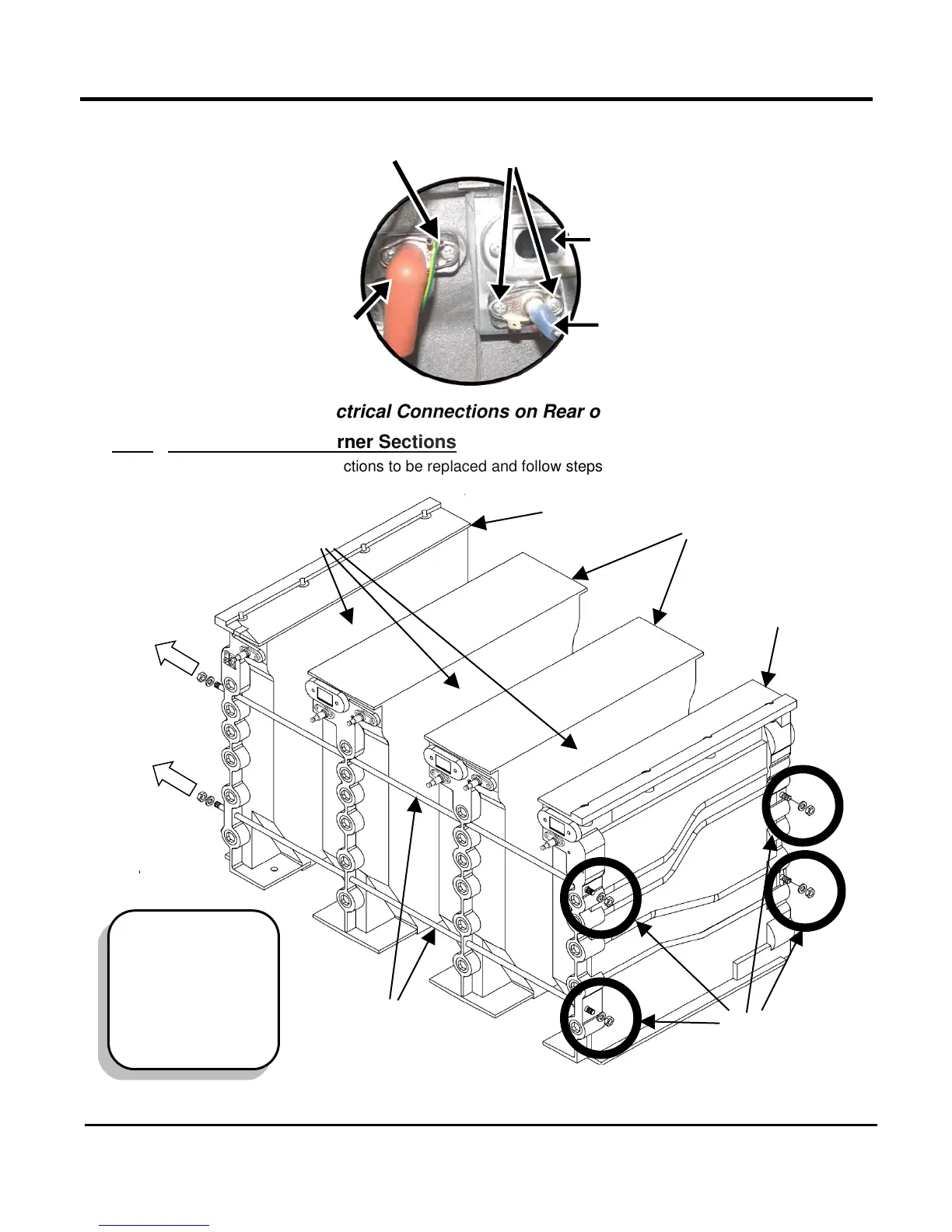

Figure 9-19: Separating the Aluminum End and Middle Sections
Metal Rods
(4 ea, 2 per side)
Remove
Nut and Washer
(4 places)
Middle Sections
End Section
Slide four
rods out
from
the end.
End Section
Combustion
Chambers
Flame
Detector
Lead
Igniter
Cable
Ground Lead
View
Port
Mounting
Screws (2)
NOTE
In USA, use G.E.
Silicones as
source for
Grey Acetyl
Silicone (see
instruction).
