Description
(1) Dip Switches
Selection of aircraft ty
pe

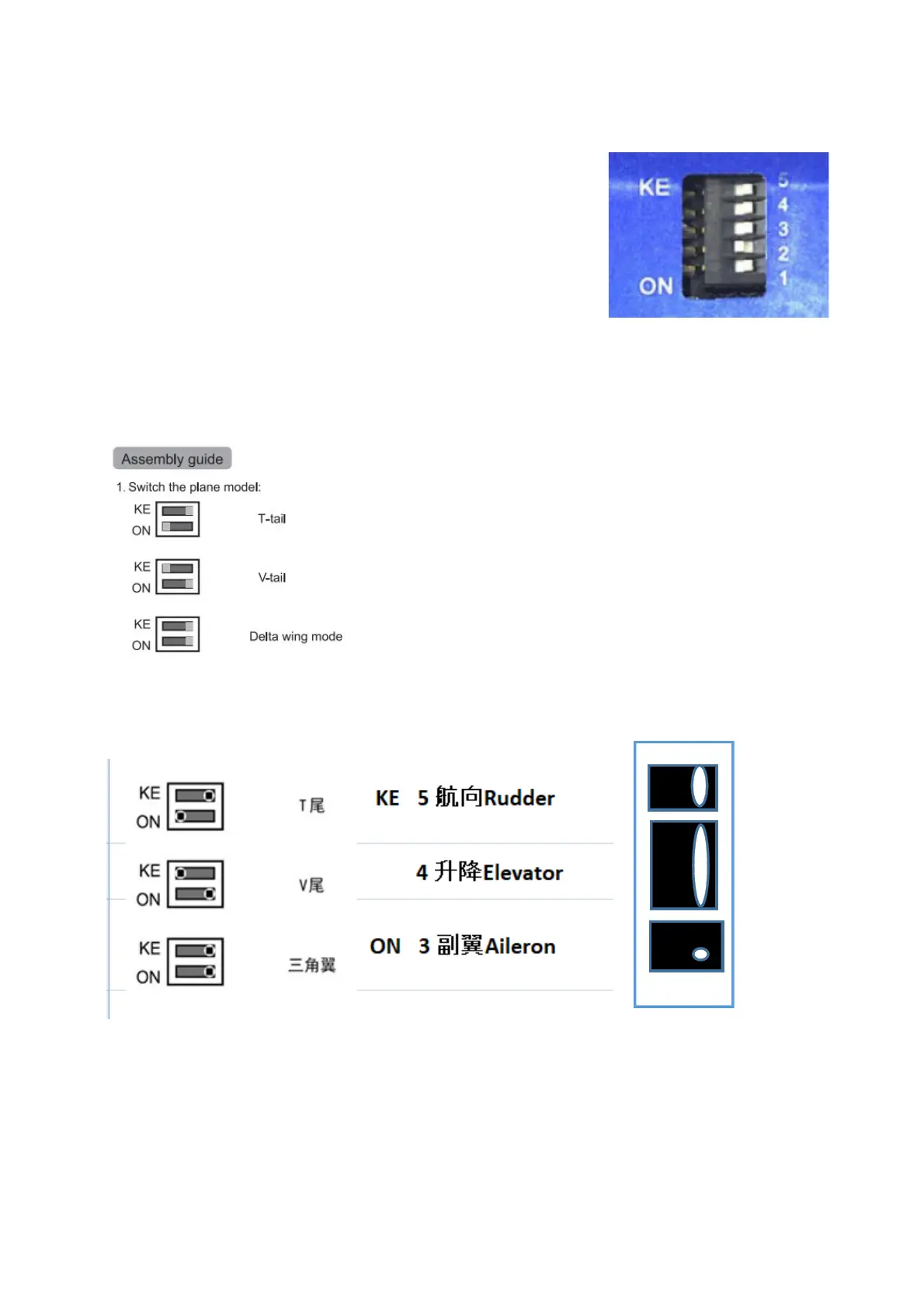

Use Dip Switches 1 and 2 to s
elect the aircraft type
#2 ON is for a regular plane
A
djustment of servo direction
I do not quite understand
the meaning of this graphic!!
